Takigen
Takigen FD-1150-H Stainless Steel Sliding Door Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FD-1150-H
Features
● When used in combination with the sealed sliding door fitting FD-150, it provides extremely smooth operation.

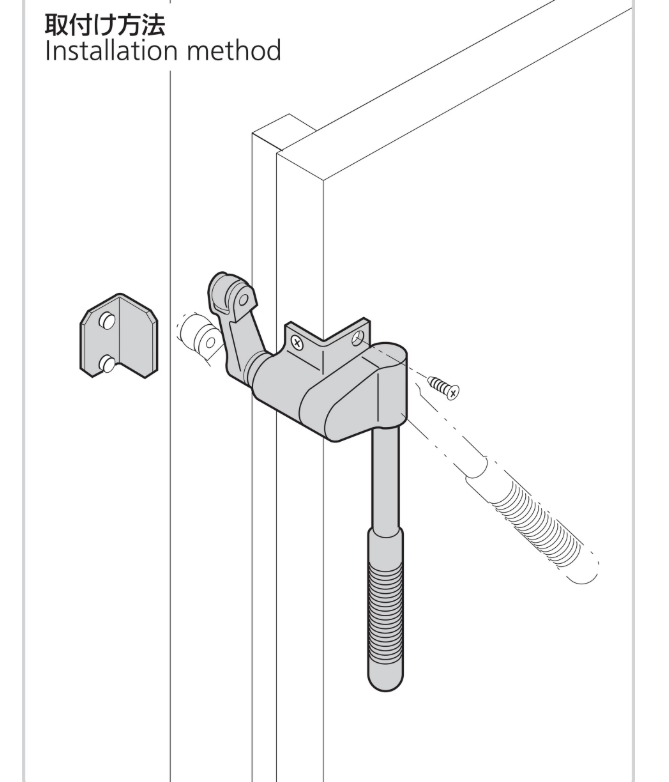

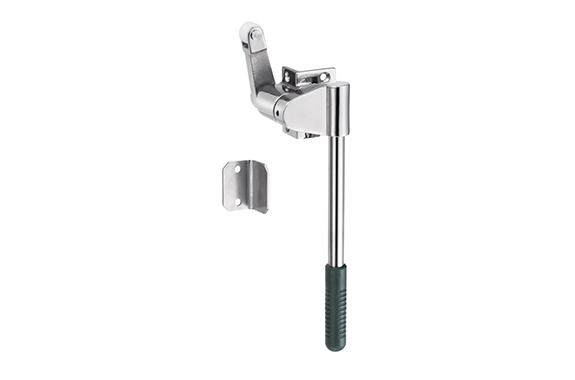

● For right-opening and left-opening (this diagram and photo both show right-opening doors).
Specification
●Material:
Body: Stainless steel casting (SUS304)
Handle: Stainless steel pipe (SUS304)
●Surface finish: Mirror buffing
Body: Stainless steel casting (SUS304)
Handle: Stainless steel pipe (SUS304)
●Surface finish: Mirror buffing
Purpose
Prefabricated refrigerator sliding door
Remarks
●Compatible with FD-150-HA・B (discontinued product).
●The sliding doors FD-150-1 to FD-150-3 do not have any remaining door width, so when using them, shorten L and P? by the remaining width (at least 100 mm is required). In this case, the opening width will be narrower by the remaining width. (See page 1692)
●The sliding doors FD-150-1 to FD-150-3 do not have any remaining door width, so when using them, shorten L and P? by the remaining width (at least 100 mm is required). In this case, the opening width will be narrower by the remaining width. (See page 1692)
