Manufacturer: TAKIGEN MFG.CO.,LTD.

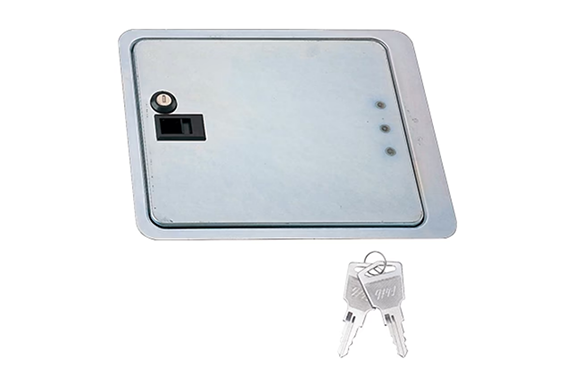

Model: FD-895

Features

● Flat lid with few protrusions.
● Latch, lock and packing can be easily installed after painting.

Specification

●Material:

Lid/Cold-rolled steel plate (SPCC)

Latch/PC+PET

Lock/Zinc alloy (ZDC)

Gasket/Chloroprene rubber (CR)

●Surface finish: Zinc plated chromate treatment (MFZn-C)

Purpose

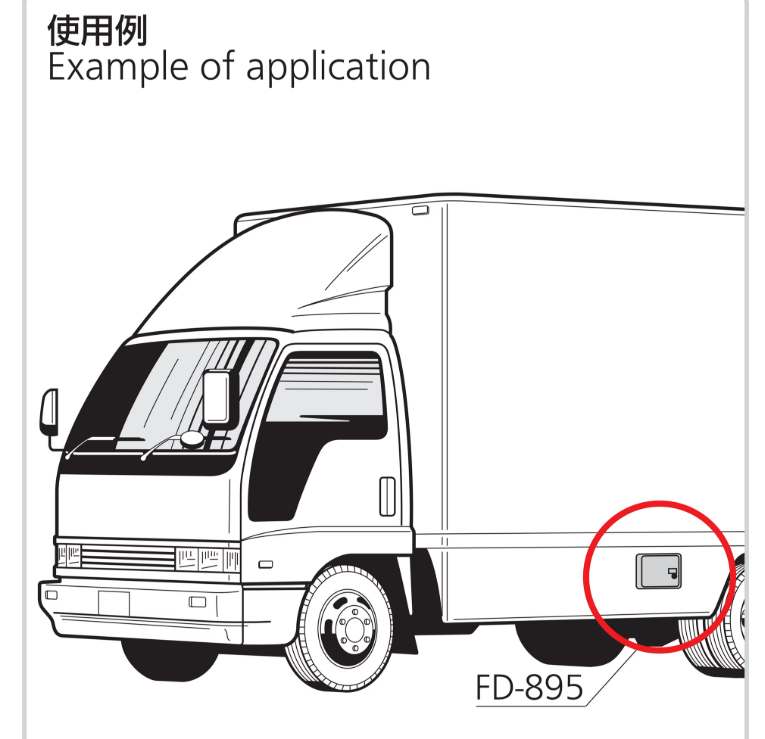

Lids for buses, specially equipped vehicles, campers, etc.

Remarks

Install by welding or drilling.

The handle uses CP-875-2 (page 1108).

The lock uses CP-315-D (page 1066).

Keyless version is also available.

For comfortable use, spray with lubricant from time to time and check operation.

We recommend attaching the packing to the inside of the lid.
