Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FE-462-0

Features

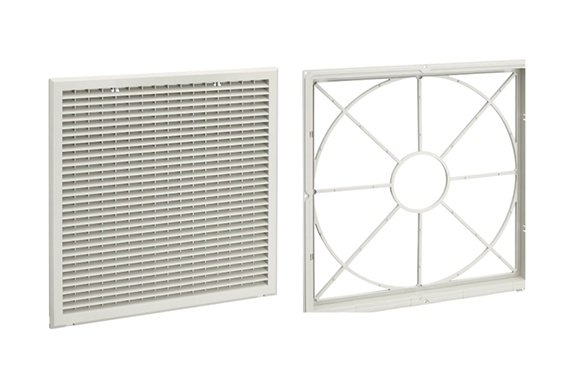

Filter replacement is possible from the front side of the housing.
One-touch temporary fastening into the panel hole improves installation workability.
Flame-retardant resin (UL94 V-0) used.
Protection class IP2X

Specification

●Material: ABS resin

●Standard color: Ivory (5Y7/1)

●Effective aperture ratio

Cover: 56% (effective area 1,193cm2)

Case: 78% (effective area 1,656cm2)

*Effective aperture ratio = effective area / panel drilling area

Purpose

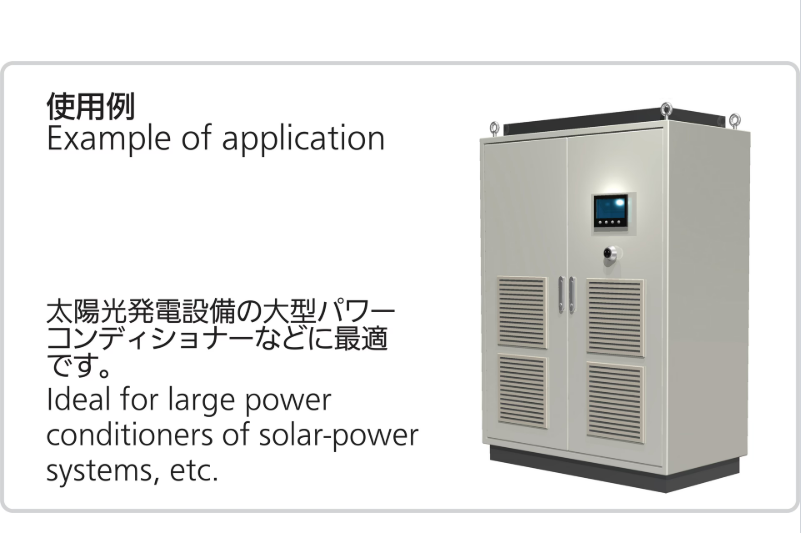

●Large control panels, communication equipment, server racks
