Manufacturer: TAKIGEN MFG.CO.,LTD.

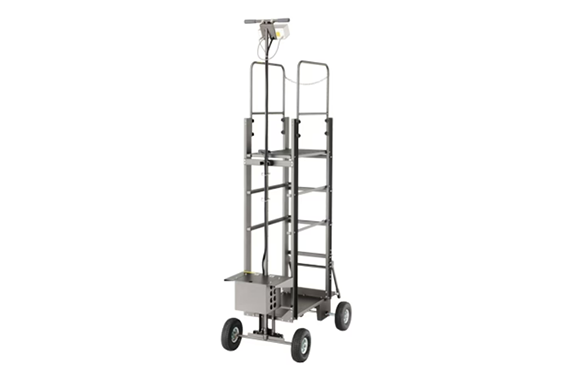

Model: K-685-T

Features

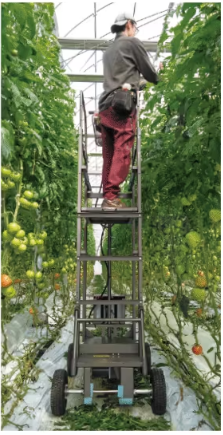

Developed for use in greenhouses.
By rearranging the pipe rail wheels K-675-1 and mounting brackets, it can also be used with φ31.8 rails.
The speed adjustment function allows you to work at your preferred speed.
The work platform is a snap-in type. By changing the guide angle mounting position, the height can be adjusted in 100mm increments between 400 and 1,800mm.

Specification

[Work table]

●Size (mm): 380 x 740

●Height (mm): Maximum 1,822 Minimum 422 Spacing 100

●Permitted mass (kg): 100

[Battery]

●Model: 40B19L x 2 Voltage: 24V

●Motor output: 150W

[Vehicle body]

●Length x width x height (mm): 1,127 x 711 x 2,179-2,779

●Product mass (kg): 100

●Drive system: Rear wheel chain drive
