Manufacturer: TAKIGEN MFG.CO.,LTD.

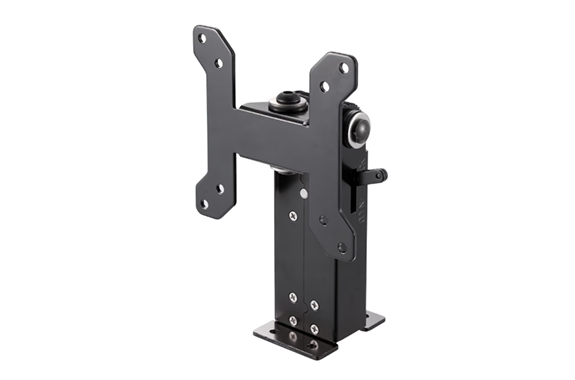

Model: K-800-7

Features

Equipped with a mechanism to fix the moving part, it has a vibration-resistant structure.

Compliant with VESA standards.

A simplified version of the K-800-4.

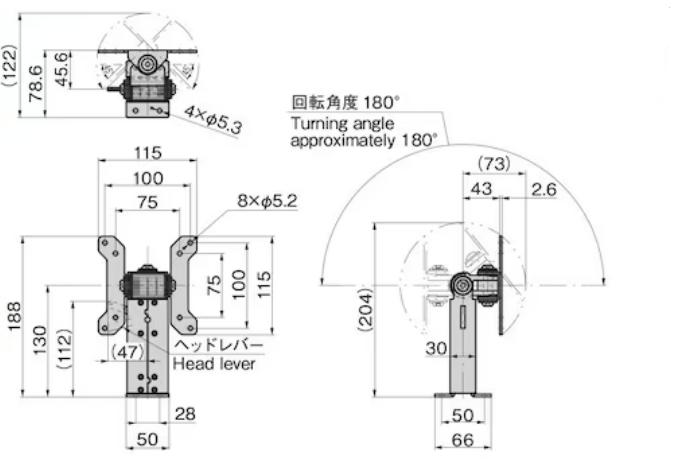

To adjust the elevation angle of the entire arm, operate the “head lever” to lock or release it. It can be set in 10-degree increments, so once you have found the desired position, swing the arm slightly up and down and lock it in place while searching for the point where the head lever engages.

Specification

●Material: Hot-rolled steel plate (SPHC)

●Surface finish: Electrodeposition coating (black)

●Estimated monitor weight: 3 kg

Remarks

●Mounting brackets and other accessories can be manufactured to suit the situation.
