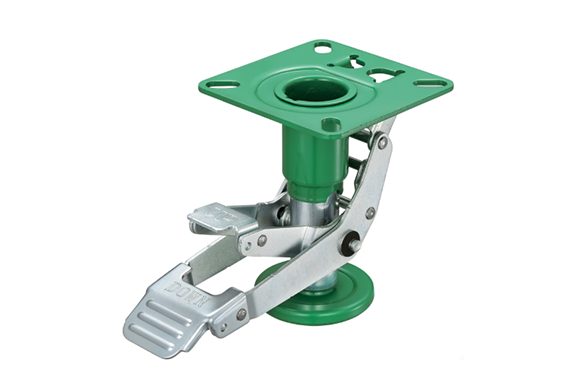

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: K-900

● Lightweight and durable ● Easy to operate ● Excellent performance

Specification

●Material: Hot-rolled steel plate (SPHC)

●Finish: Pedal: Zinc-plated chromate treatment (MFZn-C)

Body: Baked finish

Purpose

●Stopper for large and medium-sized equipment and carts

Remarks

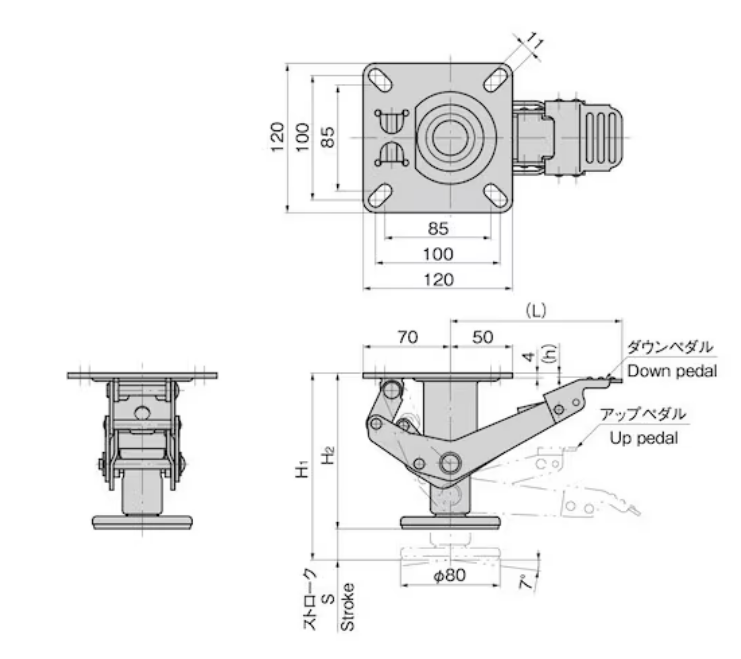

Set the pedal lock so that H1 is approximately 8 mm (proper installation height) higher than the caster installation height, and be sure to install it between the swivel casters.

When using the pedal lock, be sure to properly lubricate each operating part on a regular basis.

Do not use it as a jack.

Install the pedals outside to prevent your feet from getting caught between the installation frame and the pedals. If installing inside the frame, leave a gap to prevent your feet from getting caught.
