Manufacturer: TAKIGEN MFG.CO.,LTD.

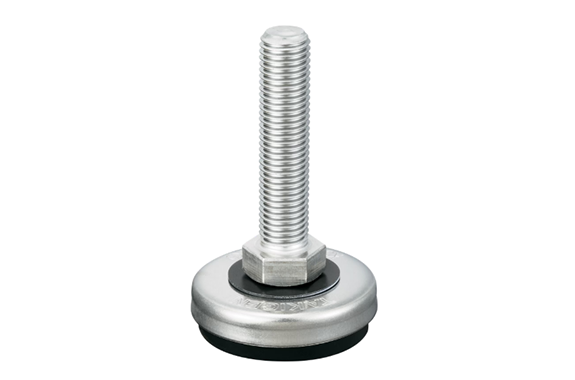

Model: KC-1280-E

Features

Conductive material is use for the rubber base to prevent static electricity problems in precision equipment.
There is a cross cut on the back of the screw for a Phillips head screwdriver, making installation easy.
The shaft is one-piece, making it excellent in load and impact resistance.

Specification

●Material: Shaft/Stainless steel rod (SUS304)

, Cover/Stainless steel plate (SUS304)

, Bottom/Ethylene propylene rubber (EPDM)

Surface finish: Electrolytic polishing

Hardness: 80°±5°

Surface resistivity: 2.6×104Ω/sq

Volume resistivity: 8.4×103Ω・cm

Remarks

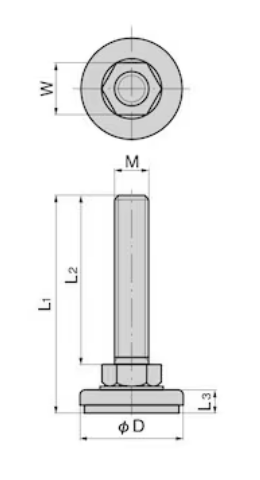

Dimensions other than those listed in the table can also be manufactured.

The bottom can manufactured with silicone rubber.

The rubber on the bottom is not flame retardant or non-migratory.
