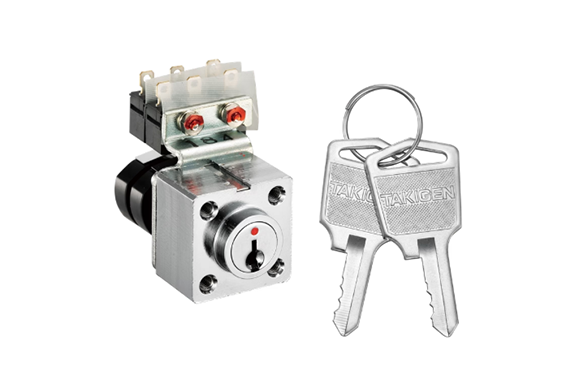

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: S-3

This type was created in pursuit of miniaturization of the lock section.
A wide variety of contact configurations can be obtained by changing the cam.
The protrusion from the panel surface has been reduced.
The switch section uses a JIS C4505 equivalent product

Specification

●Material: Body: Free-cutting brass bar (C3604BD)

, Key: Brass plate (C3713P)

●Finish: Body: Chrome plating (MBCr)

, Key: Nickel plating (MBNi)

●Accessories: 2 keys

Purpose

●Various computers and power supplies

Remarks

*For momentary (S-3R-45-B), please refer to page 1517.

*Up to 6 circuits can be manufactured as a special order.

*Different key versions are also available.

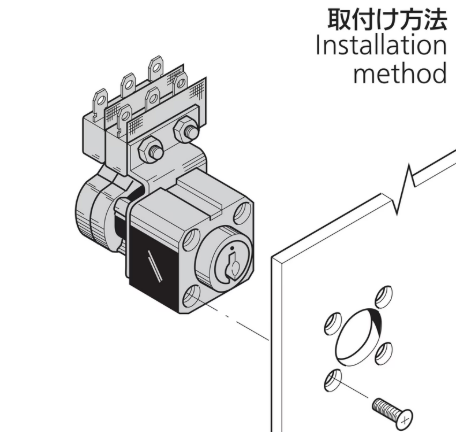

The microswitch can be set to the position shown by the imaginary line by changing the installation direction of the mounting plate, stopper and cam.
