Manufacturer: TAKIGEN MFG.CO.,LTD.

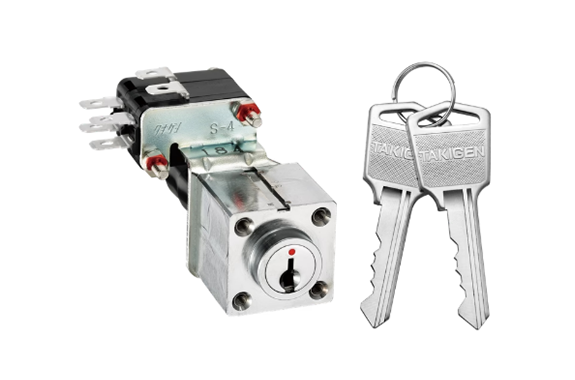

Model: S-4

A popular model created by changing the shape of the S-1
A wide variety of contact configurations can be achieved by changing the cam
The protrusion from the panel surface has been reduced
The switch section uses a product equivalent to JIS C4505V type

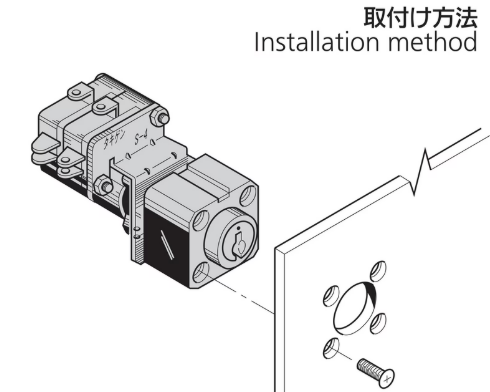

The microswitch can be set to the position shown by the imaginary line by changing the installation direction of the mounting plate, stopper, and cam.

Specification

●Material: Body: Free-cutting brass bar (C3604BD)

, Key: Brass plate (C3713P)

●Finish: Body: Chrome plating (MBCr)

, Key: Nickel plating (MBNi)

●Accessories: 2 keys

Purpose

●Various computers and power supplies

Remarks

●For momentary (S-4R-45-B) models, please refer to page 1517.

●Key variations are also available.
