Manufacturer : TECHNO MORIOKA
Model: 7738-A100

Industry’s thinnest compact electrical conductivity meter

confirmation; dc power supply; DIN rail mounting; No water quality information provided; Analog output

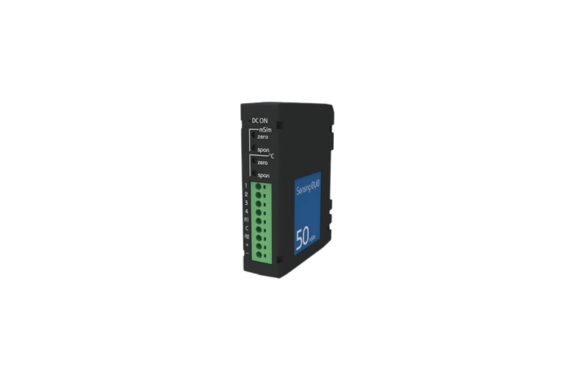

This is an ultra-thin electrical conductivity (conductivity) measurement module.
With a width of just 26mm, it’s one of the thinnest electrical conductivity (conductivity) measurement modules in the industry, allowing for space-saving installation in control panels and other applications.
It features analog output (4-20mA) and can output two parameters: water quality and water temperature.
The use of a plug-in terminal block reduces installation time.
Please use it in combination with the 7770 sensor series.

Product-compatible water quality

Product usage

Product Specifications

Model	7738-A100
Measurement range	0 to 50mS/m (0 to 500μS/cm)
Product size	W26 × H100 × D80 mm
output	Analog output: 4-20mA DC (2 points)
power supply	DC24V (3.5W or less)
Measured water temperature	5-90℃
Usage environment	Ambient temperature 0-50°C / Humidity 5-80%RH (non-condensing)
Included sensor	7770-S300 (R1/2) S400 (R3/4)
others	Analog output for both water quality and water temperature Includes dedicated sensor for immediate use after purchase; DIN rail mounting Single sensor input

Compatible sensors

Please select from the 7770 sensor series based on the diameter of the piping to which it will be installed.

Model	7770-S300		7770-S400
Product image
Mounting pipe diameter	R1/2		R3/4
Mounting piping material	Resin and metal piping		Resin and metal piping
Operating pressure	0.5MPa or less		0.5MPa or less
temperature	0-75℃		0-75℃
Sensor cable	5m dedicated cable		5m dedicated cable
