TECHMO 7780 Series Sensing Eye780 Amplifier-Integrated Electrical Conductivity Sensor

Manufacturer : TECHNO MORIOKA
Model: 7780 series

R1/4 connection port; amplifier-integrated electrical conductivity sensor, ideal for integration into small devices.

confirmation; Amplifier and sensor integrated; dc power supply; No water quality information provided; Analog output; Installation piping R1/4

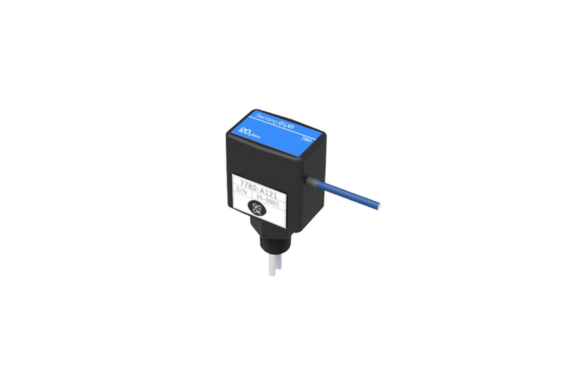

This is an ultra-compact amplifier-integrated electrical conductivity sensor (conductivity sensor).
Its R1/4 connector size allows for space-saving installation.
Equipped with an analog output (4-20mA), it can be combined with control and display devices such as PLCs for water quality measurement and management.
It supports high water temperatures up to 90°C, making it suitable for use in medical and food processing equipment requiring hot water disinfection. (Pressure resistance requirements apply.)

Product-compatible water quality

Product usage

Product Specifications

Model	7780-A152	7780-A121
Measurement range	15–500 μS/cm	0.6–20 μS/cm
Product size	W34 x H70.5 x D24mm (including sensor)
accuracy	Measurement accuracy: ±3.0% FS (at 25°C water temperature) Repeatability: ±1.0% FS (at equivalent resistance)
Measurement output signal	4-20mA DC output (0 to FS = 4 to 20mA) *Connected load resistance: 350Ω or less. If the measured value exceeds the range, the output will be held at approximately 21mA.
power supply	DC24V±5% 2W or less
Usage environment	Ambient temperature 5-60°C (if water temperature is 80°C or higher, keep it between 5-45°C or lower) Ambient humidity 5-80%RH (but no condensation)
Connection port diameter	R1/4
cable	3-core cable, 2000±50mm, AWG28 (equivalent to 0.08 sq)
others	Cost reduction through integrated amplifier ; RoHS2 compliant. Uses a DC 3-wire system for easy wiring and installation.
