Manufacturer : TECHNO MORIOKA (TECHMO)

With its four-electrode system, it can measure water quality even in high-concentration ranges.

Installation piping R3/4

This sensor is for use with the 7735 when measuring high concentrations.
It employs a 4-electrode sensor that is resistant to dirt and polarization, making it ideal for measuring high concentrations of liquid fertilizers, wastewater, and other liquids. It
also supports immersion-type measurements in tanks and other containers.

Product-compatible water quality

Product usage

Product Specifications

Model	7735-S110

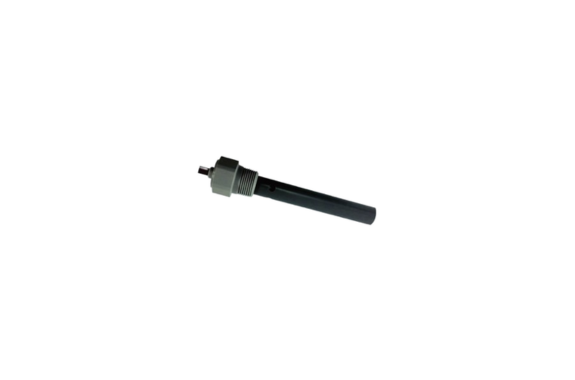

Product image
Electrode material	SUS-316
Body material	PPS
Connector connection	none
screw-in diameter	R3/4
Mounting piping material	Metal and resin piping Tank dunking
Operating pressure	0.5MPa or less
temperature	0-50℃
Compatible water quality meter	7735 series
Sensor cable	Direct cable 5m

Product Features

The 7735-S110
is ideal for measuring high-concentration water quality. It is highly resistant to contamination and has minimal impact on measurement results.
