Manufacturer: Teraoka Co., Ltd (ANEX).
Model: 250TC-1

Please use this product in combination with our ANX series chemical storage cabinets, stainless steel chemical storage cabinets, medical cabinets, etc.

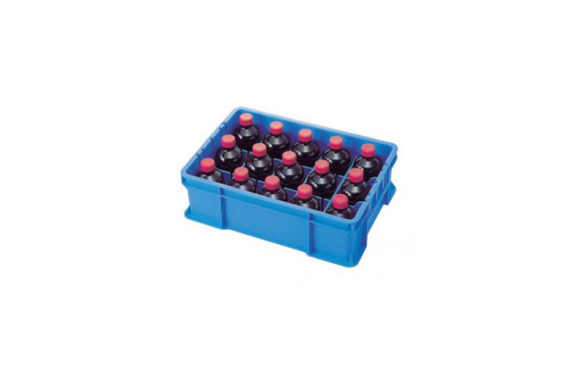

*The reagent bottles inside the container shown in the photo are sold separately.

• The reagent bottle container consists of a main body and large and small dividers.
• The dividers have notched grooves, and by combining the large and small dividers, various items such as glass containers, plastic containers, and stainless steel containers can be stored.
• The dividers are fitted into mounting grooves on the main body, so they do not rattle much.

Specifications

• Material: Polypropylene
• Components: Reagent bottle container body (TC-1) x 1, Large divider x 2, Small divider x 4
• Number of reagent bottles that can be stored: 15 x 250mL bottles
  *The number of bottles that can be stored may vary depending on the outer diameter of the containers used.
• Container body (TC-1) dimensions: Outer dimensions/Long side 400 x Short side 280 x Height 125 mm; Upper inner dimensions/Long side 377 x Short side 256 x Height 120 mm; Effective inner dimensions/Long side 369 x Short side 248 x Height 110 mm
• Partition plate (large) dimensions: Long side 381 x Short side 95 mm Thickness approx. 4.5 mm
• Partition plate (small) dimensions: Long side 246 x Short side 75 mm Thickness approx. 4.5 mm
