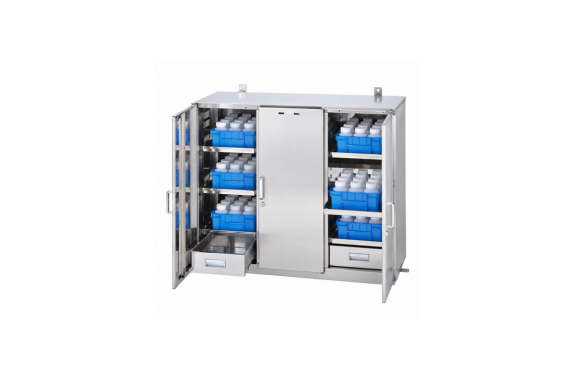

Teraoka ANX-500M Super Annex Chemical Storage Cabinet (3 Compartments, With Drawers) (Suitable For Wall Installation)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: ANX-500M

It can be installed against a wall, and sample bottles can be easily removed.
(When installed against a wall, the wall-mounting brackets cannot be used.)

*Delivery is to the vehicle only. Installation and setup are not included.
*Polyethylene bottles and containers are not included.
*Bolts and screws for the anti-tipping brackets are not included.

Model		ANX-500M
Main Body	Material / Finish	Stainless Steel SUS304; Exterior: Hairline Finish; Interior: #400 Polished Finish
	External Dimensions	W1295 × D525 × H1000 mm (Excluding Handles, etc.)
	Internal Dimensions	(W350 × D480 × H900 mm) × 3 Compartments
Door	Material / Quantity	Stainless Steel SUS304; 3 Doors / 1 Left-Opening Door, 2 Right-Opening Doors
Door	Handle / Number of Locks	U-Shaped Square Handle (Zinc Alloy, Plated Finish); 3 Locks
Plate	Material / Quantity	Stainless Steel SUS304; 9 Plates (Integrated Handle Type, with Rail Connection Clip Holes)
	Internal Dimensions	Approx. W380 × D418 × H35 mm (as a Tray for Containers)
	Rated Load Capacity	MAX 40 kg / Pair
Drawer	Material / Quantity	Stainless Steel SUS304; 3 Drawers (Internal Dimensions: W306 × D398 × H105 mm / Drawer)
Rail	Material / Load Capacity	Accuride Rail / Steel; Allowable Load Capacity: 40 kg / Pair
Rail	Quantity / Spacing	24 Rails (12 Pairs), Pre-installed on Plates and Drawers; 50 mm Pitch
Ventilation Holes		100 mm Wide on Both Side Panels; Slot Width 5 mm × Oblong Length 40 mm; 10 mm Pitch
Accessories		Anti-Tip Brackets: 2 on Top Panel and 2 Side Positions; 6 Magnetic Catches; 3 Level-Adjustment Spacers
Weight		Approx. 115 kg

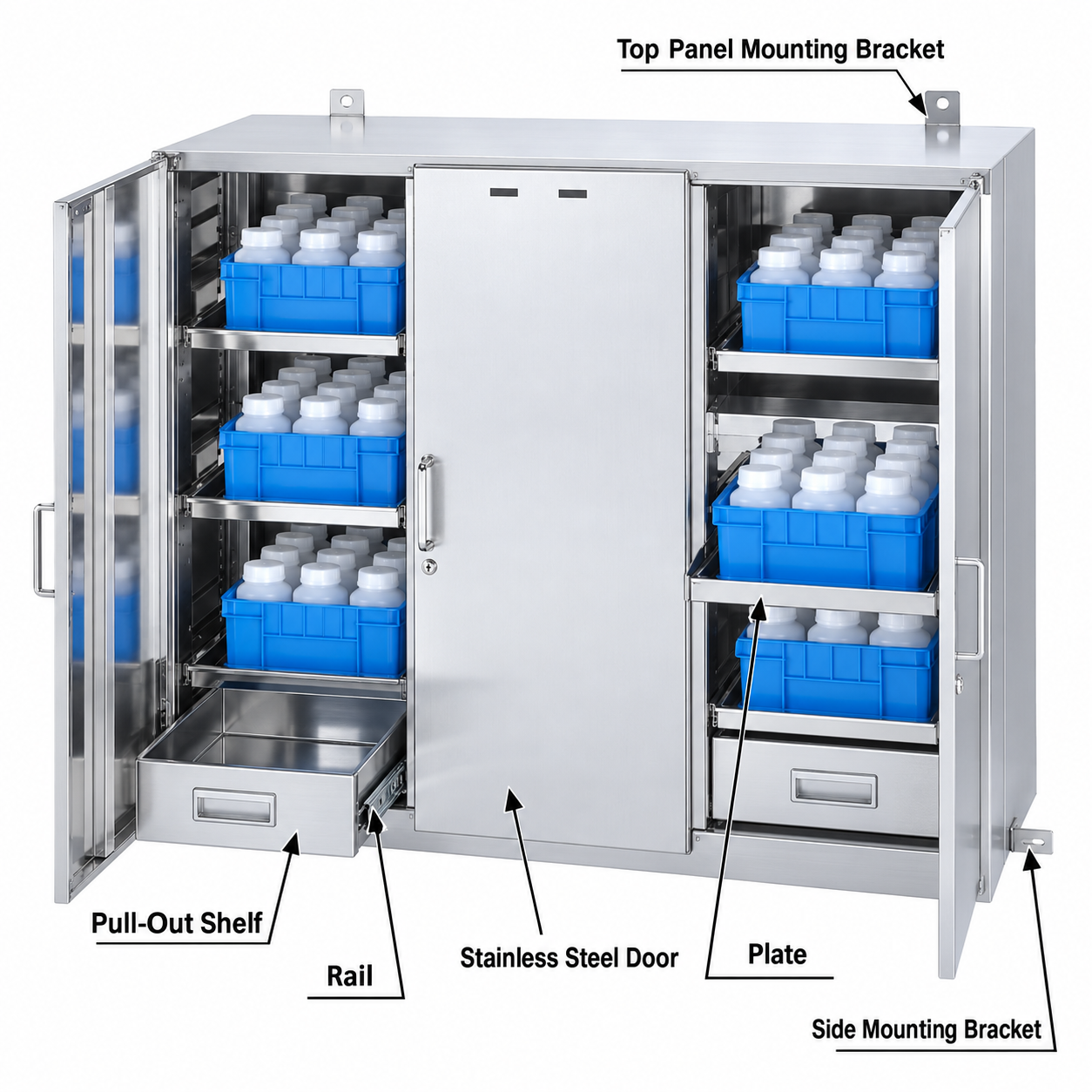

■ Reagent bottle containers make it easy to store bottles and other containers.
The design also allows containers positioned at the back to be removed easily. When the rails are fully retracted, a light locking mechanism engages to prevent the plate from sliding forward.
● For safety, securely fix the unit to both the floor and the top panel.

Reagent Bottle Container (Sold Separately) – Storage Capacity

■ The reagent bottle containers used with the Super Annex ANX-500 and ANX-600 models can be configured in various ways simply by changing the divider plates. They are especially recommended when organized bottle management is required.
■ANX-500 / ANX-600 Models: Total Reagent Bottle Storage Capacity and Number of Containers

Model	500G	500M	600G	600M
Number of Containers	9	9	12	12
100 mL Bottle Capacity	216 Bottles	216 Bottles	288 Bottles	288 Bottles
250 mL Bottle Capacity	135 Bottles	135 Bottles	180 Bottles	180 Bottles
500 mL Bottle Capacity	108 Bottles	108 Bottles	144 Bottles	144 Bottles
1000 mL Bottle Capacity	54 (36) Bottles	54 (36) Bottles	72 (54) Bottles	72 (54) Bottles
