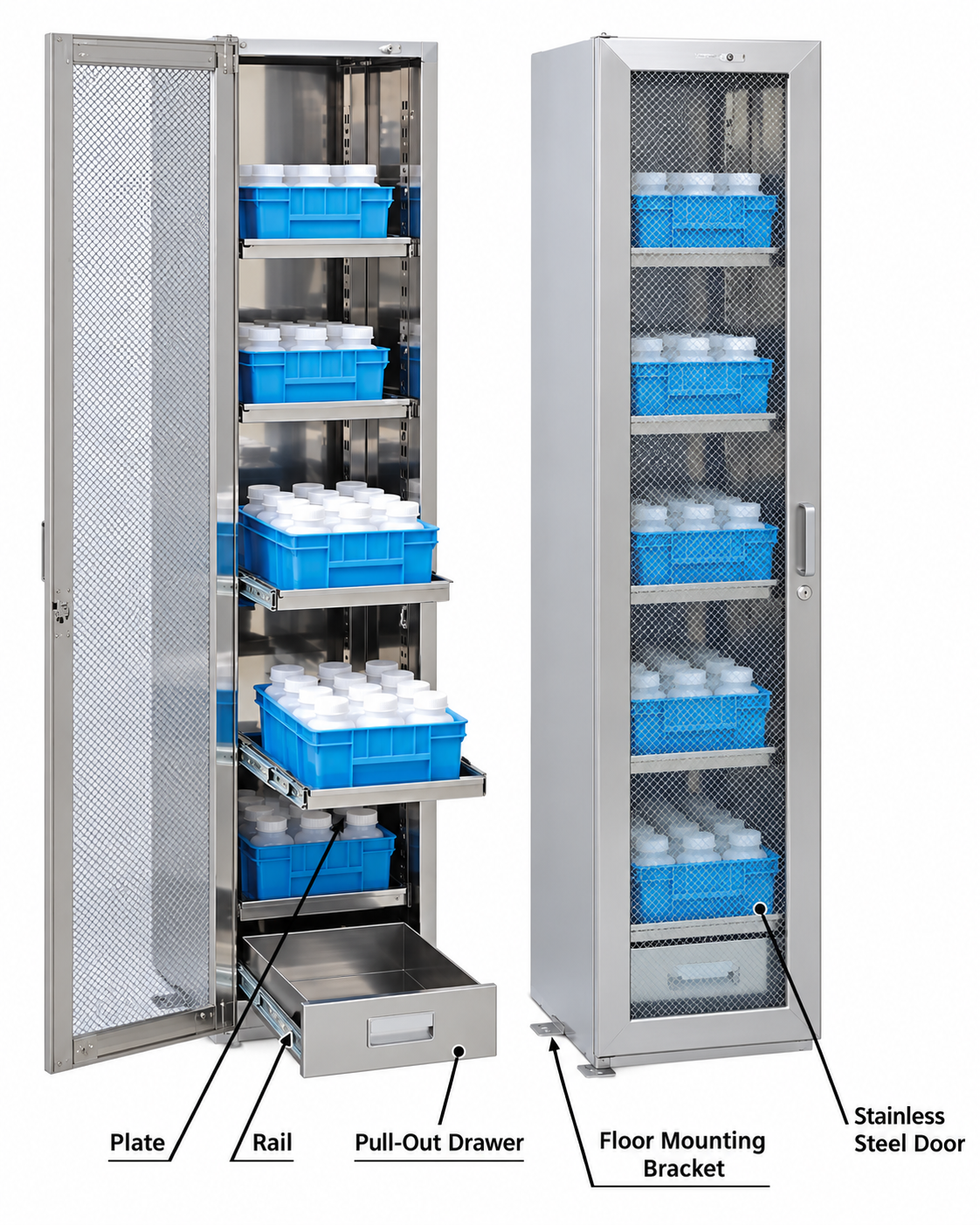

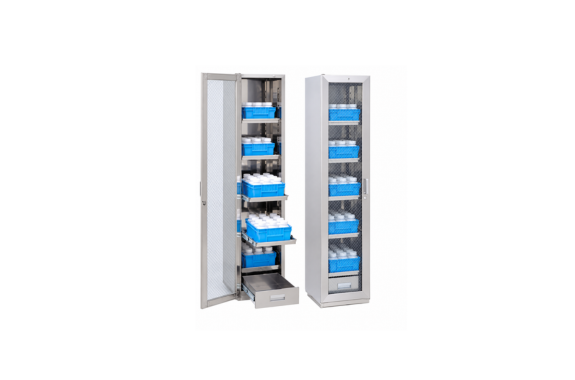

Teraoka ANX-50GL Super Annex Chemical Storage Cabinet (Left-Opening, Glass Door)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: ANX-50GL

This is ideal for storing small quantities of reagent bottles in small spaces. Place it against a wall or in any gap between other equipment.

*Delivery is to the vehicle only. Installation and setup are not included.
*Poly bottles and containers are not included.

Even when installed against a wall, the door opens 90°, allowing you to retrieve stored items such as containers and poly bottles on the plate, and documents and small containers in the drawers.

*When installed against a wall, the floor fixing brackets on the wall side cannot be used.

Features slide rails that can be installed at any position at 50mm intervals. The number of items that can be stored can be increased by adding rails and plates.
The lower section has a drawer for storing small containers and documents.

■Specifications

Model	ANX-50GL
Main Body Material / Finish	Stainless Steel SUS304; Exterior: Hairline Finish; Interior: Polished Finish
External Dimensions	W445 × D525 × H1800 mm (Excluding Handle and Fixing Brackets)
Internal Dimensions	W350 × D480 × H1700 mm (Excluding Rail Dimensions)
Door Material	Window: 6.8 mm Thick Transparent Wired Glass; Frame: Stainless Steel SUS304
Door Opening Direction	Left-Opening
Door Handle	Square Type (Zinc Alloy, Plated Finish)
Plate (Integrated Handle Type)	SUS304; 5 Plates Included as Standard; 4 Rail Connection Lock-Clip Holes; Internal Dimensions: Approx. W308.5 × D418 × H35 mm; Rated Load Capacity: MAX 40 kg / Pair; Applications: Reagent Bottle Container Support, Storage of Equipment and Supplies, etc.
Drawer	Material: Stainless Steel SUS304; Handle: Alloy with Plated Finish; Internal Dimensions: Approx. W306 × D393 × H105 mm; Quantity: 1
Rail	12 Steel Accuride Rails; Allowable Load Capacity: 40 kg / Pair; Rails Can Be Installed and Repositioned at 50 mm Intervals
Ventilation Holes	Cutout Width 5 × Length 40 mm; Oblong Holes at 10 × 10 mm Pitch on Both Side Panels
Anti-Tip Fixtures	1 Side / Floor Fixing Point on Each Side and 1 Top Panel / Wall Fixing Point; Bolts and Screws Are Not Included; 3 Level-Adjustment Spacers
Magnetic Catch	1 Magnetic Catch Each at the Upper and Lower Door Receivers of the Main Body (Pre-installed)
Lock	1 Lock per Door (Pre-installed)
