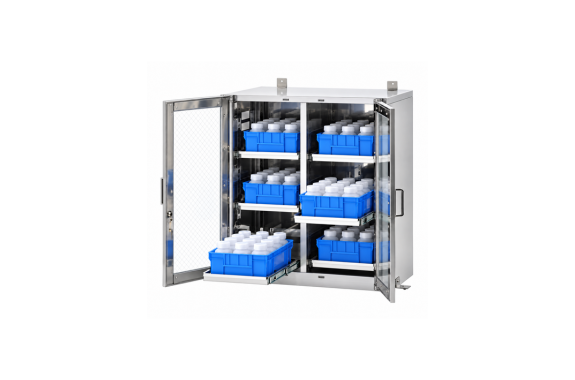

Teraoka ANX-707G Super Annex Chemical Storage Cabinet (Floor-Standing Type) (Wall-Mounted Type)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: ANX-707G

This chemical storage unit is compact, easy to transport and install, and allows for monitoring of the internal conditions, ensuring safety.

* Delivery is to the vehicle only. Installation and setup are not included.
* Reagent bottle containers and poly bottles are sold separately.
* Screws and bolts for anti-tipping brackets are not included.
* If stacking with ANX-707M, a separate quote will be provided.
* If the slide rail type chemical cabinet is installed against a wall, the door may hit the wall and not open fully, and the plates and rails may not slide out smoothly. Our chemical cabinets have overcome this problem.
(However, side and floor fixing brackets may not be usable.)

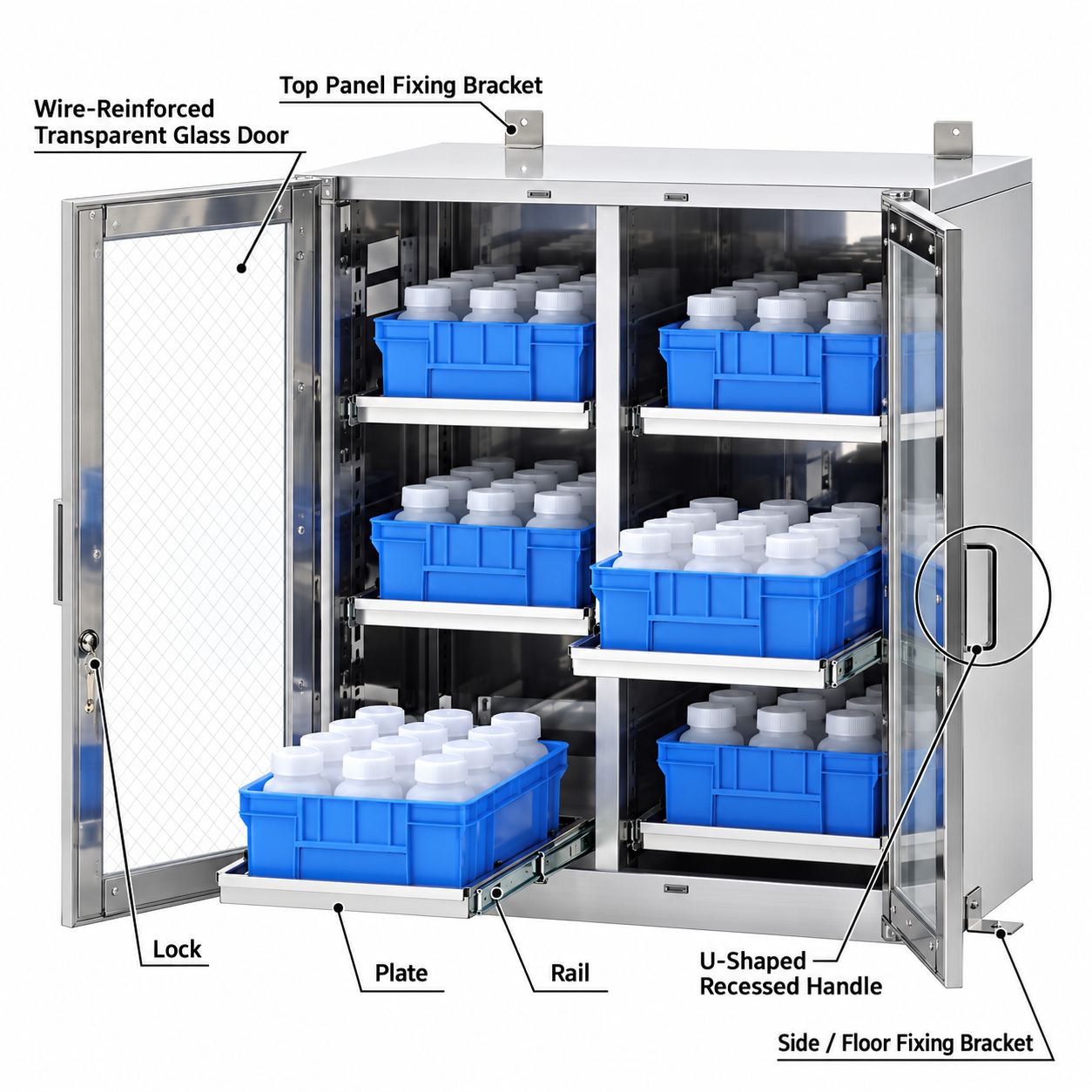

The extendable rails make it easy to put in and take out reagent bottle trays.
6.8mm wire-reinforced transparent glass is used, which helps prevent glass from shattering. Also, when locked, the door frame prevents the plates from flying out in the event of minor vibrations.

Specification

Model	ANX-707G
Main Body / Plate / Door Frame	Stainless Steel SUS304
External Dimensions	W820 × D525 × H900 mm
Effective Internal Dimensions	(W330 × D480 × H800 mm) × 2 Compartments
Door / Lock	6.8 mm Thick Transparent Wired Glass; Single-Swing Door; U-Shaped Square Handle (Zinc Alloy, Plated Finish); 1 Lock per Door (Common Key)
Plate	Tray with Integrated Handle (Pre-processed with Clip Holes for Rails); Internal Dimensions: Approx. W288 × D418 × H35 mm; Rated Load: MAX 40 kg/pair (per plate); Included Quantity: 6 Plates (Reagent Bottle Containers Sold Separately)
Rail	12 Steel Accuride Rails Included; Mounting Pitch: 50 mm; Allowable Load: 40 kg/pair
Main Body Processing	One 100 mm-Wide Ventilation Opening on Each Side; Slit Width: 5 mm × Length: 40 mm; Oblong Slots at 10 mm Pitch
Accessories	Anti-Tip Brackets (1 on Each Side and 2 on the Top Panel); 3 Leveling Spacers
Weight	Approx. 65 kg

Reagent Bottle Capacity	100 mL	250 mL	500 mL	1000 mL
Storage Capacity per Tray	24 Bottles	15 Bottles	12 Bottles	6 Bottles
Number of Reagent Bottle Trays	6 Trays
Total Reagent Bottle Storage Capacity	144 Bottles	90 Bottles	72 Bottles	36 Bottles
