Manufacturer: Teraoka Co., Ltd (ANEX).
Model: ANX-900

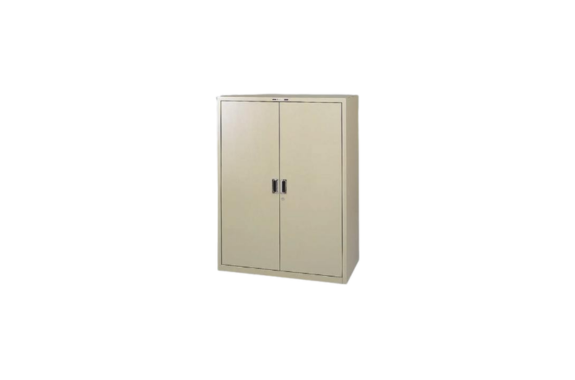

A convenient flipper door system allows the door to be stored on the side of the main body.

*Delivery is to the vehicle only. Installation and setup are not included.
*Screws and bolts are not included with the anti-tipping bracket.
*For safety reasons, please be sure to install the anti-tipping bracket.
*Containers and other items shown in the example photos are not included.

■Specifications

• External dimensions: W1000×D525×H1330mm
• Material/Finish: Steel with melamine baked coating
• Effective internal dimensions: W790×D460×H1250mm (excluding shelves and drawers)

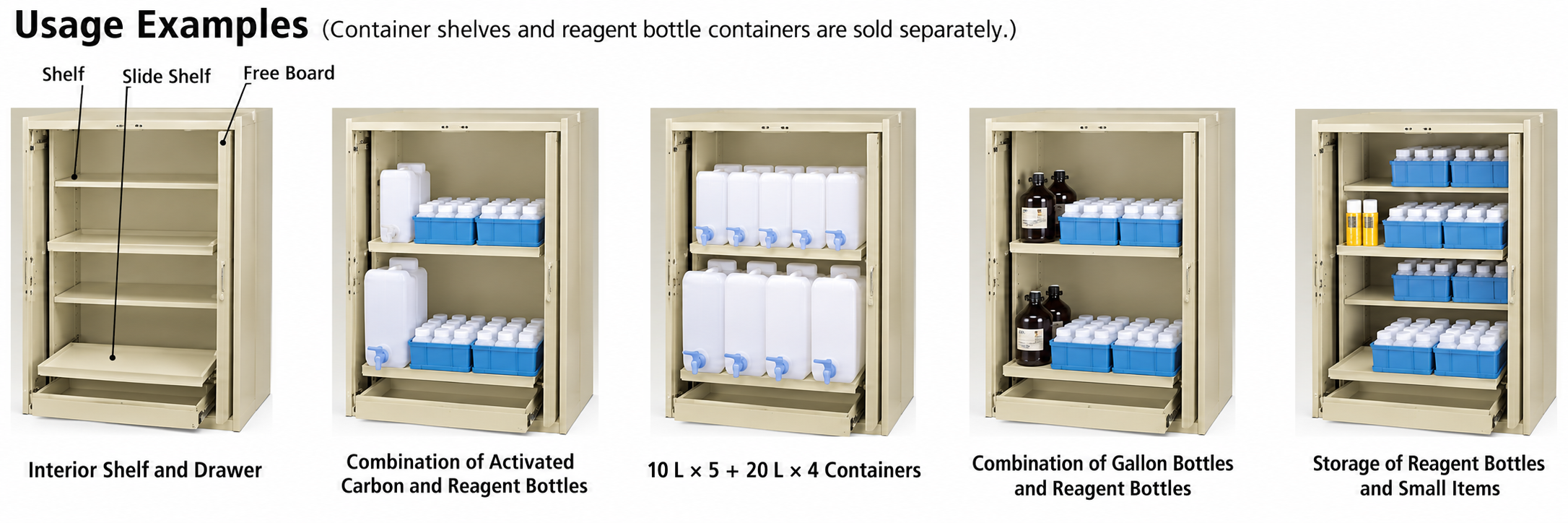

• Shelves: 2 shelves/fixed installation position/removable; W786×D420×H20mm
• Sliding shelf: 1 shelf/2 Accuride rails/fixed installation position; Accuride rail: rated load capacity 85kg/pair; shelf dimensions: W751×D385×H46mm
• Drawer: 1 drawer/with Accuride rail/fixed installation position; Accuride rail: rated load capacity 40kg/pair; effective internal dimensions: W698×D293×H84mm
• Accessories: Anti-tip brackets (1 on each side, 2 on top) Door key 1
