Manufacturer: Teraoka Co., Ltd (ANEX).
Model: ANX-B152

The maximum diameter of usable cylinders is φ166mm or less.

*Delivery is to the vehicle only. Installation and setup are not included.

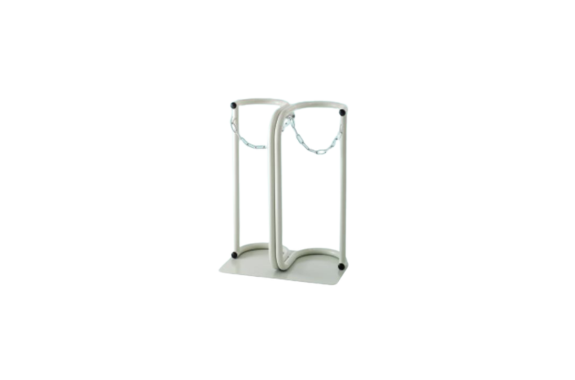

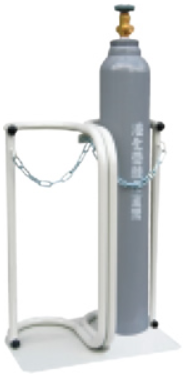

• A beautifully shaped cylinder stand.
• Caps are attached to the four ends of the pipe to prevent injury when inserting or removing cylinders .

■Specifications

• Frame: Steel pipe φ25mm, melamine baked finish
• Maximum diameter of usable cylinder: φ166mm or less
• Maximum number of cylinders that can be stored: 1500L x 2 (approximately φ140 x 990mm in size)
• Chain included
• Dimensions: W460 x D300 x H602.3mm
• Anchor bolt fixing holes (φ10) 2 locations on the base
