Manufacturer: Teraoka Co., Ltd (ANEX).
Model: ANX-BM2

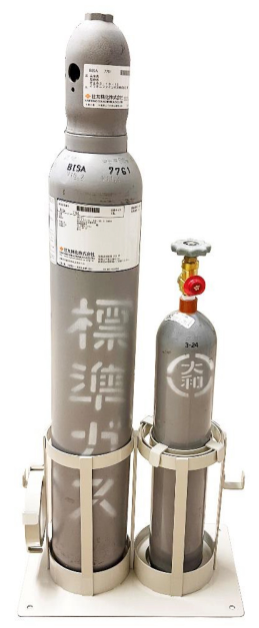

Usage Example	Anchor Position

*Delivery is to the vehicle only. Installation and setup are not included.

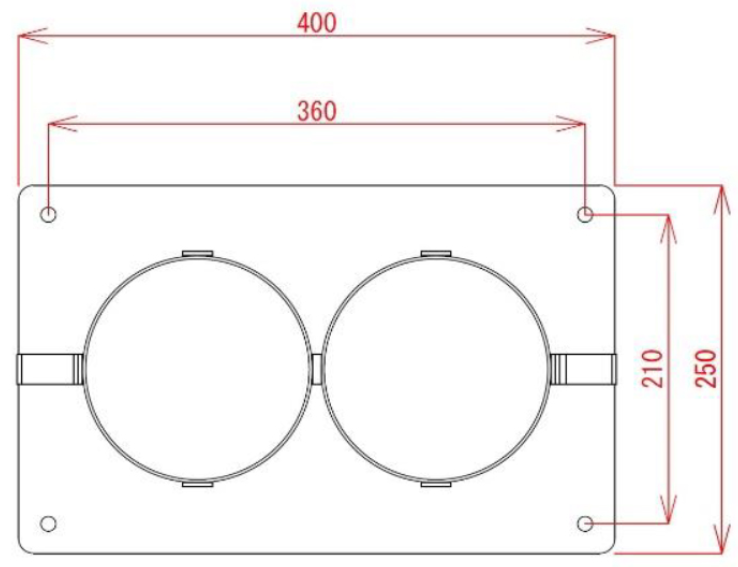

*Four anchor bolt holes are pre-drilled; please secure to the floor. φ10mm, 4 locations. Please refer to the anchor location diagram for precise placement.

• You can choose to store two 500L cylinders, two 1500L cylinders, or one 500L and one 1500L cylinder.
• The included attachment allows for flexible combinations of 500L and 1500L cylinders.
• If the attachment is not used, the cylinders can be hung on the side hooks.

■Specifications

• Usable cylinder sizes: 1500L cylinder/φ140×H990mm, 500L cylinder/φ103×H650mm
• Storage: Two 500L cylinders, two 1500L cylinders, or one 500L and one 1500L cylinder
• External dimensions: W400×D250×H300mm
