Manufacturer: Teraoka Co., Ltd (ANEX).

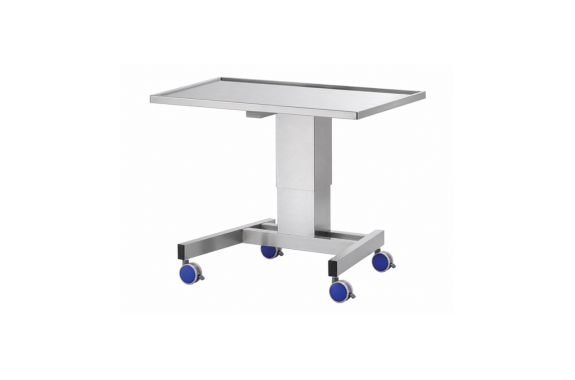

Model: ANXY-950

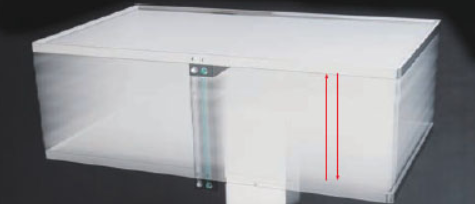

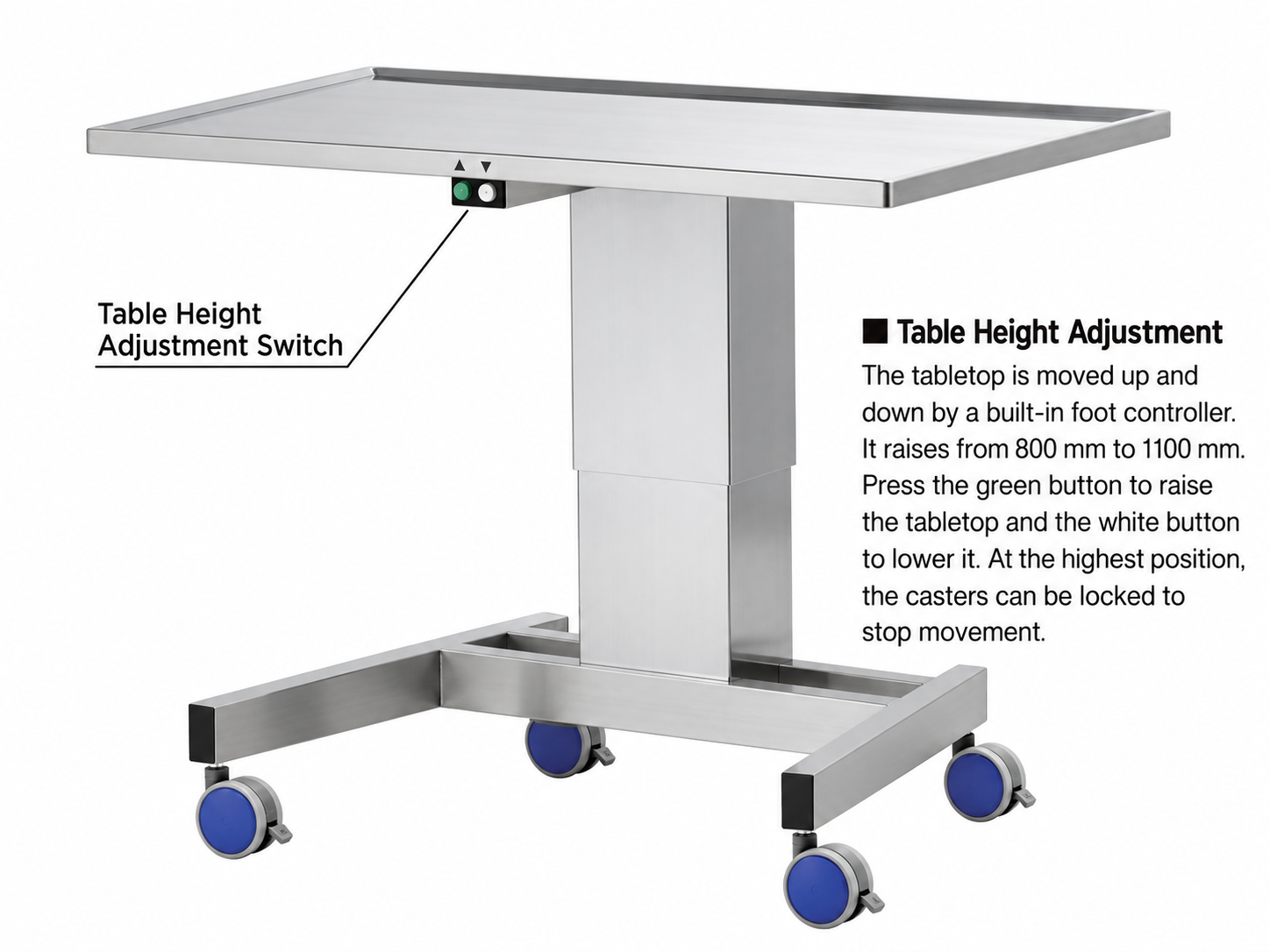

Illustration of Tabletop Height Adjustment

The height of the work surface can be adjusted according to the worker’s height and the type of work being done, allowing for efficient work. This height-adjustable workbench can be used for multiple purposes, such as arranging microsurgical instruments during animal experiments or placing equipment during inspections.

*Delivery is to the vehicle only. Installation and setup are not included.

[Specifications]

• Top plate size: W920 x D550mm (10mm wide x 7mm deep edge)
• Lifting height: H800-1100mm
• Lifting speed: 15mm/sec (when loaded with 20kg)
• Base size: Front W700 x Rear W500 x D530mm
• Lifting method: Electric cylinder (DC12V battery powered)
• Number of lifts on a full charge: Approximately 280 times (300mm lift back and forth)
• Charging time: Approximately 3 hours (plug charging cord into AC100V power outlet)
• Weight: 39kg
• Accessories: Approximately 2m charging cord
• Material: Stainless steel (top plate, body, base)
• Casters: φ75mm twin-wheel casters (with stopper)

*The number of lifts on a full charge varies depending on the battery condition and frequency of use.
*Do not pour water directly on it or use thinner-based solvents.
*Specifications and other details may be changed without notice for quality improvement purposes.
