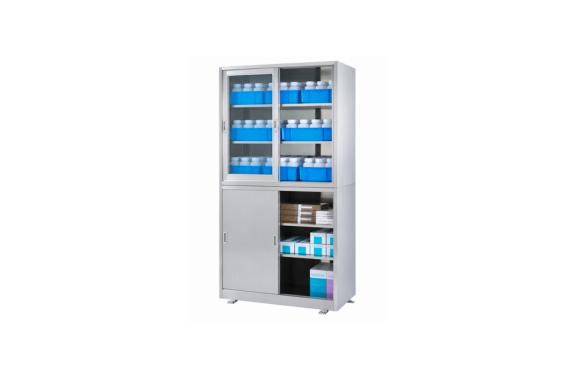

Teraoka AX-1 Medical Cabinet (Upper And Lower Set)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: AX-1

The Medical Cabinet AX model is a storage unit that uses a stacking system.

*Delivery is to the vehicle only. Installation and setup are not included.
*Containers, bottles, and boxes are not included.
*For safety reasons, please store reagent bottles, gallon bottles, etc., in a container (sold separately).

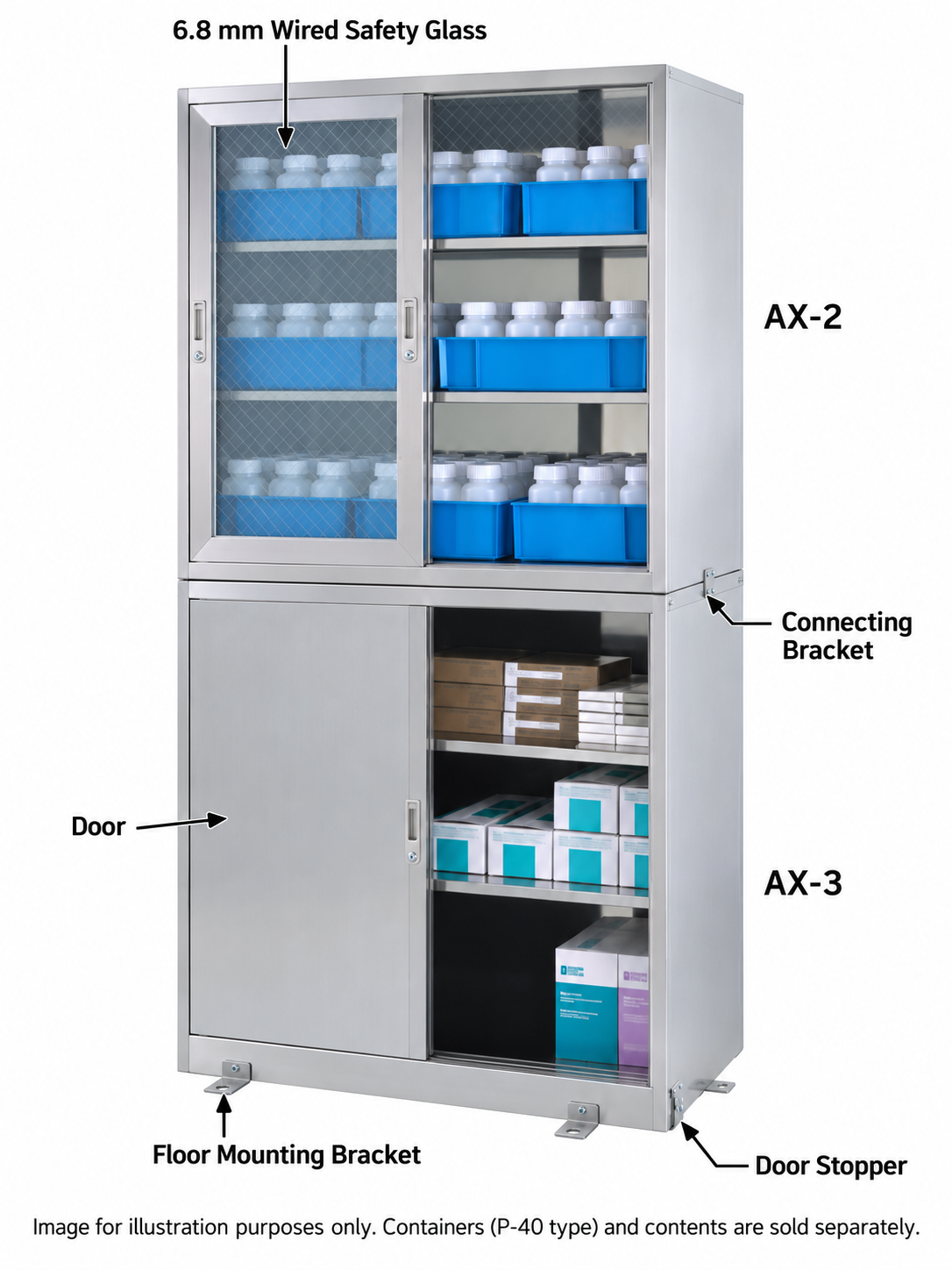

Storage cabinet with glass upper and stainless steel sliding doors on the lower section.
Quiet sliding doors that do not make creaking noises.
The sliding doors can only be removed at specific positions, so locked doors cannot be easily removed.
Both upper and lower sections have shelves measuring W903 x D415mm that can be used efficiently.
Upper section (AX-2) effective internal dimensions: W850 x D420 x H820mm; Lower section (AX-3) effective internal dimensions: W850 x D420 x H790mm

Model		AX-1
Type		Upper and Lower Section Set
Main Body Material / Finish		Stainless Steel SUS304; Exterior: Hairline Finish; Interior: #400 Polished Finish
External Dimensions W × D × H (mm)		910 × 500 × 1800
Effective Internal Dimensions W × D × H (mm)		–
Door	Material	Upper Section: 6.8 mm Thick Wired Glass Door; Window Frame: SUS304; Lower Section: SUS304
	Recessed Handle	Boat-Shaped Recessed Handle (SUS304)
	Lock	1 Lock Each on Upper and Lower Sections; Plated Finish
	Opening / Closing Method	Sliding Doors with Resin Rollers
Shelf	Material	Stainless Steel SUS304 / W903 × D415 × H20 mm (1 Shelf)
	Included Quantity	Upper Section: 2 Shelves; Lower Section: 2 Shelves
	Shelf Support Brackets	16 pcs. (for 4 Shelves)
	Mounting Interval	Adjustable within 30 Holes at 25 mm Pitch
Anti-Tip Brackets	Upper Section / Wall Connection	2 pcs. (2 at Rear of Upper Section)
	Upper / Lower Section Connection	2 pcs. (1 on Each Side)
	Lower Section / Floor Connection	4 pcs. (2 at Front, 1 on Each Side)
	Not Included	Bolts, Screws, Nuts, and Other Fasteners for Anti-Tip Brackets Are Not Included
Other		Upper Section: Without Base Skirt; Lower Section: With Base Skirt
Weight		95 kg

* For safety, store reagent bottles, gallon bottles, and similar items inside containers sold separately.
* Packing Fee: Upper Section ¥3,000; Lower Section ¥3,000; Set ¥6,000.
