Manufacturer: Teraoka Co., Ltd (ANEX).
Model: AX-2

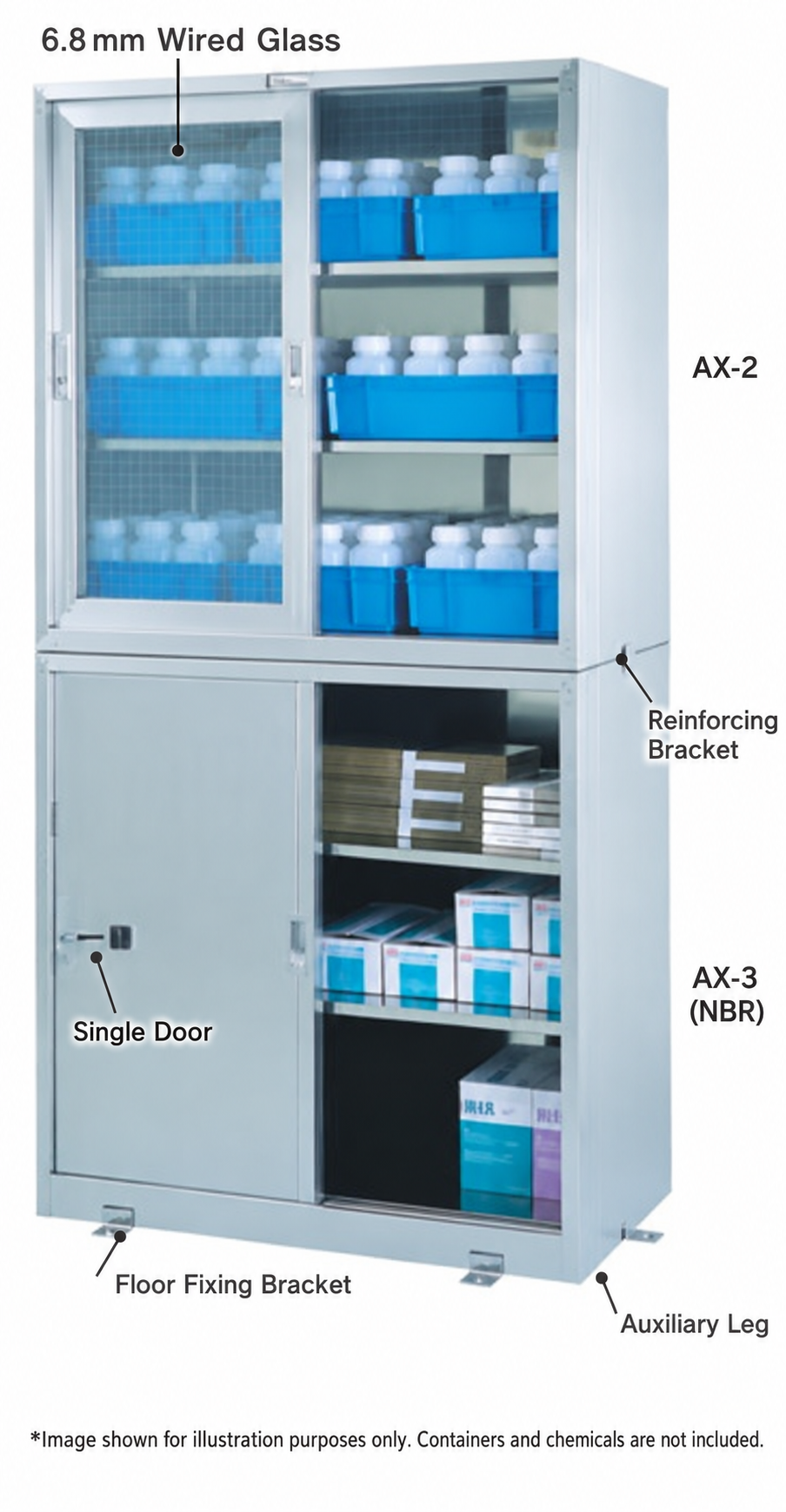

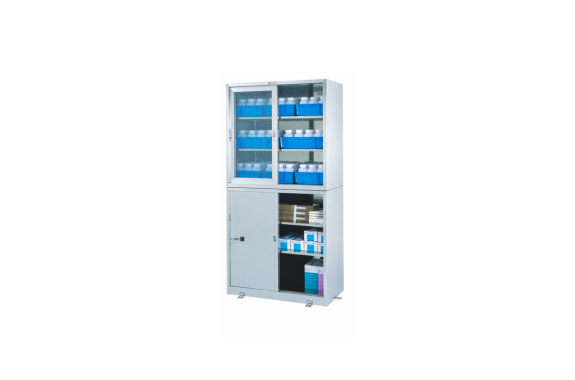

This is a storage cabinet with sliding glass doors.

*Delivery is to the vehicle only. Installation and setup are not included.
*For safety reasons, please store reagent bottles, gallon bottles, etc. in a container (sold separately).
*AX-3 (lower section) is sold separately.

• The sliding doors are quiet and do not produce any creaking noises.
• Features 6.8mm thick wire-reinforced glass sliding doors, allowing you to check the contents of the cabinet at a glance from the outside. In the event of a minor impact, the wire prevents glass from shattering and trays from protruding if the glass breaks.
• The sliding doors can only be removed at specific positions, so locked doors cannot be easily removed.

■Specifications

• Category: Upper section only
• Body material/finish: Stainless steel SUS304 / Exterior: Hairline finish Interior: #400 polished
• External dimensions: W910 x D500 x H900mm
• Effective internal dimensions: W850 x D420 x H820mm
• Door: Material/(Glass) 6.8mm wire-reinforced, (Window frame) Stainless steel SUS304 embedded Handle/Boat-shaped pull handle (SUS304), Lock/1 location (plated finish), Opening/Closing method/Sliding door (with resin door rollers)
• Shelf board: Material/Stainless steel SUS304 (W903 x D415 x H20mm), Number of included/2, Shelf support brackets/8 pieces, Mounting interval/Can be moved and installed within the range of 25mm pitch x 30 holes
• Anti-tipping bracket: Upper section/Wall connection/2 pieces (rear wall side)

*Bolts, screws, nuts etc. for anti-tipping bracket are not included.

• Without hakama (skirt)
• Weight: Approx. 50kg

※Packing fee: Upper section ¥3,000-
