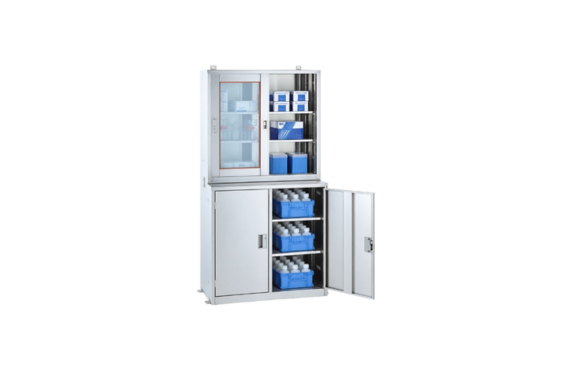

Teraoka SGM type Stainless Steel Chemical Storage Cabinet (Separate Upper And Lower Sections) (Upper And Lower Section Set)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: SGM type

It is widely used as the most popular chemical storage solution.

*Delivery is to the vehicle only. Installation and setup are not included.
*Boxes, containers, and other accessories are not included.

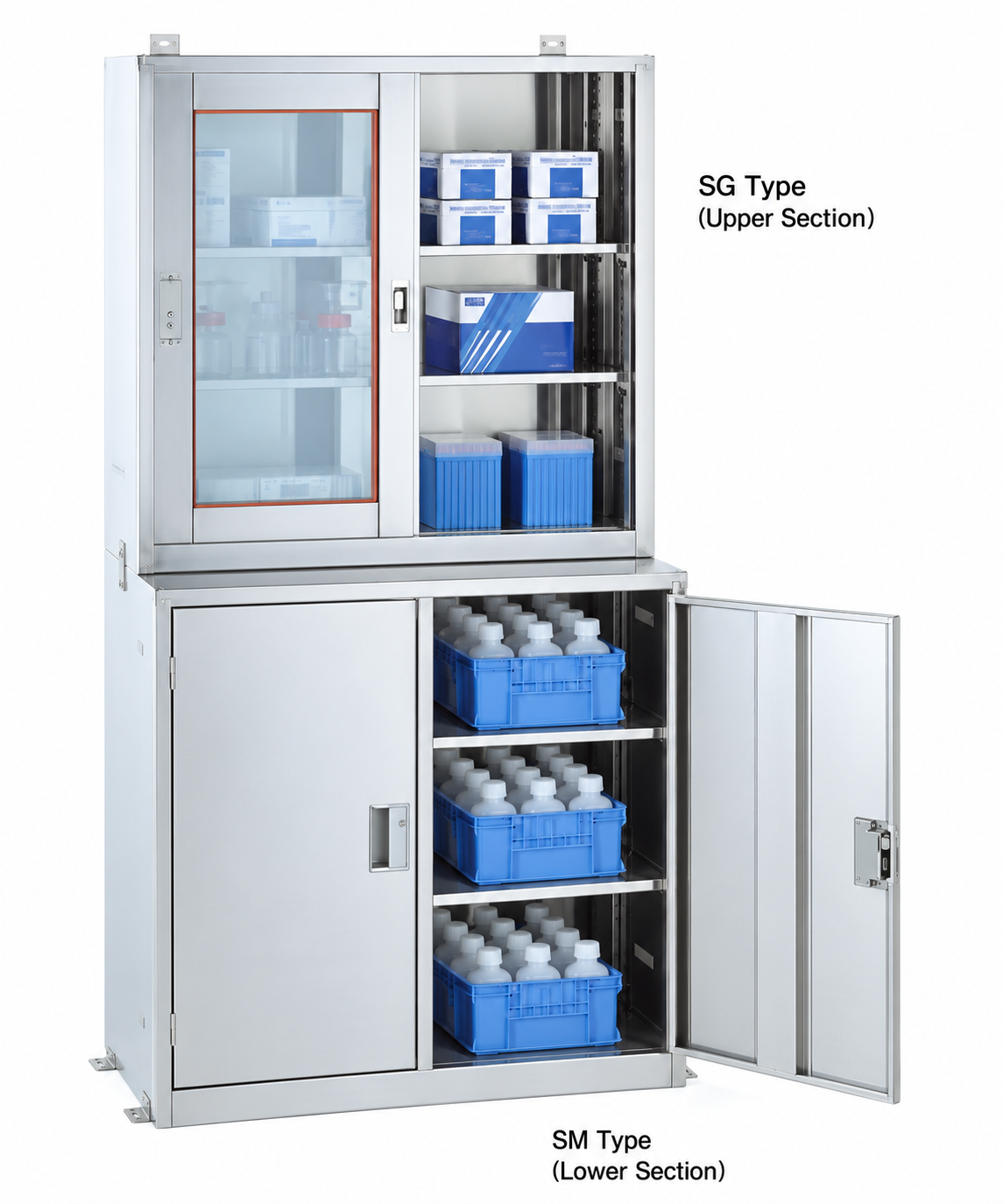

Divided into two compartments, it can be used to store reagent bottles in containers (sold separately), manage equipment and supplies, or remove shelves to store gallon bottles.
The upper SG-type door has a wire frame to prevent glass from shattering.
The lower SM-type door uses a sliding hinge and can be removed.
For safety, be sure to install the anti-tipping bracket.
　*Screws for fixing the bracket are not included.
In addition to the bracket fixing method from the side, it is also possible to connect the upper and lower units by screwing them together inside the unit, minimizing the gap when placing them side by side.

Model		SM Type	SG Type
Main Body	Material	Stainless Steel SUS304; Exterior: Hairline Finish; Interior: Polished Finish
	External Dimensions (mm)	W900 × D500 × H900	W900 × D330 × H900
	Internal Dimensions (mm)	(W420 × D474 × H810) × 2 Compartments	(W860 × D260 × H820) × 1 Compartment
	Opening Dimensions (mm)	W402 × H800 (1 Compartment)	W850 × H820 (1 Compartment)
	Ventilation Holes	1 Each at Upper and Lower Positions on Both Side Panels	1 Each at Upper and Lower Positions on Both Side Panels
Door	Material	SUS304 (Excluding Hinges and Handle); Sliding Hinge System	Frame: SUS304 (Excluding Handle and Lock); Window: Wired Glass
	Type / Handle	Single-Swing Door with Resin Recessed Handle	Sliding Door with Alloy Recessed Handle
	Lock	1 Lock per Door × 2 (Common Key)	1 Lock
Shelf	Material / Quantity	Stainless Steel SUS304, 4 Shelves	Stainless Steel SUS304, 2 Shelves
Shelf	Shelf Spacing	2 Fixed Shelves per Compartment, 256 mm Spacing	Approx. 115 mm × 6 + 130 mm Spacing from the Bottom

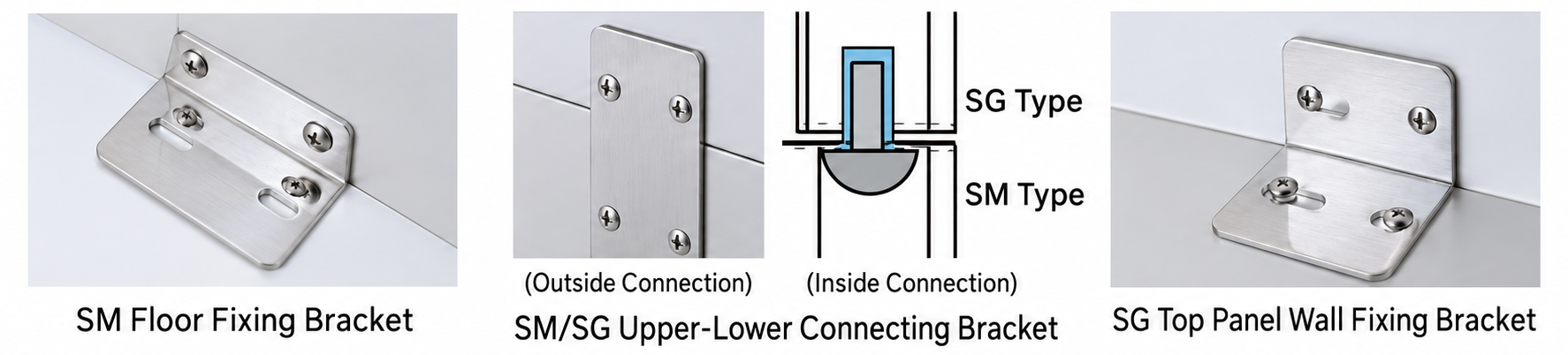

Anti-Tip Brackets		Floor-Fixing Brackets at 2 Side Positions × 2	2 Top Panel Fixing Brackets
Anti-Tip Brackets		For SM + SG Set: Upper/Lower Connecting Brackets, 1 Position on Each Side × 2
Weight		43 kg	38 kg
