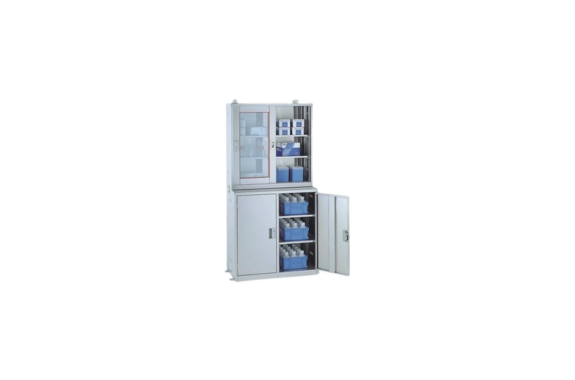

Teraoka SM Type (Lower Section) Stainless Steel Chemical Storage Cabinet (Separate Upper And Lower Sections)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: SM type (lower section)

It is widely used as the most popular chemical storage solution.

*Delivery is to the vehicle only. Installation and setup are not included.
*Poly bottles and containers are not included.

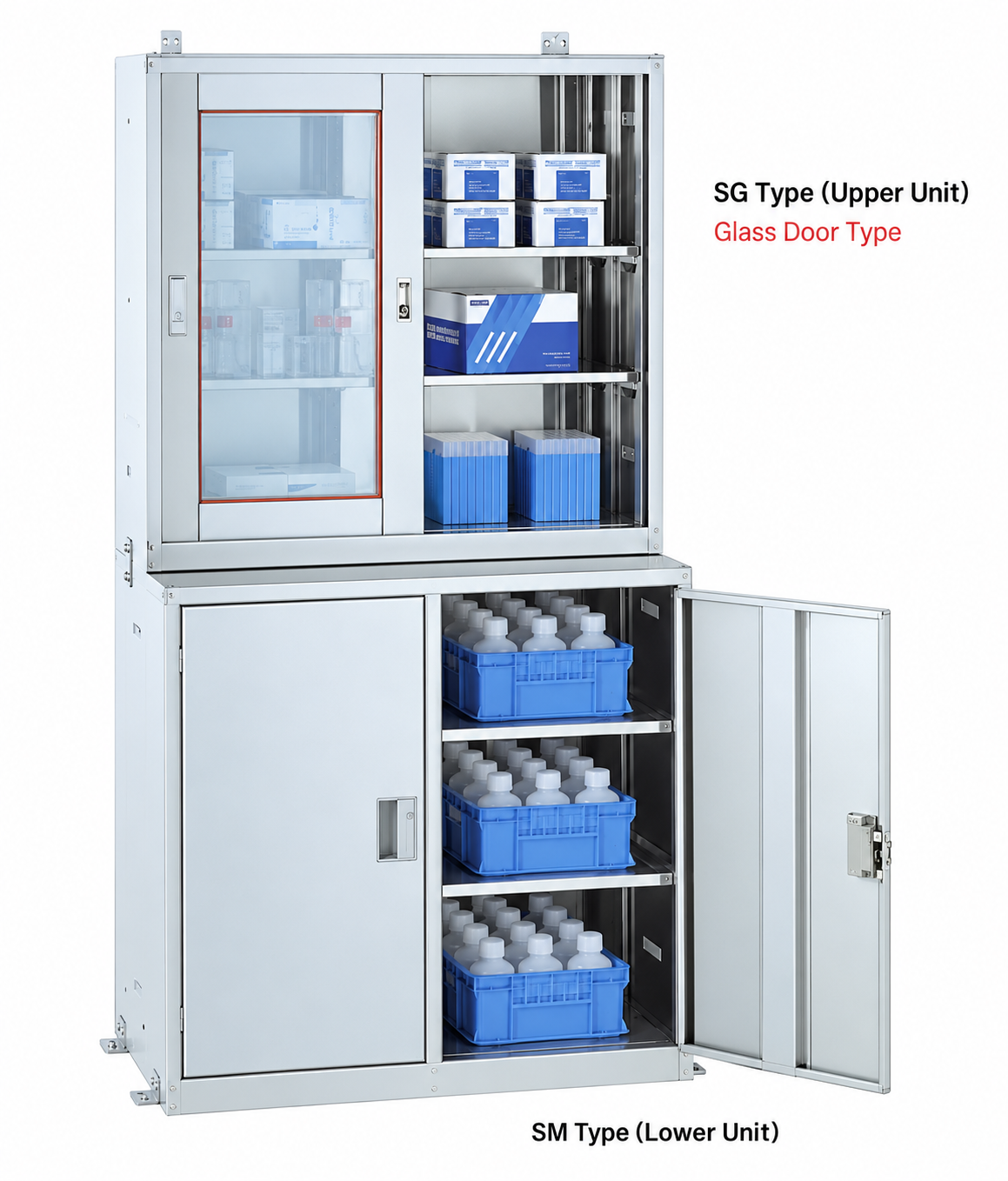

  • The two-compartment design allows you to store reagent bottles in containers (sold separately), organize equipment and supplies, and accommodate gallon bottles by removing the shelves.
  • In addition, the SM-type door uses a sliding hinge, so you can easily remove the door when necessary.

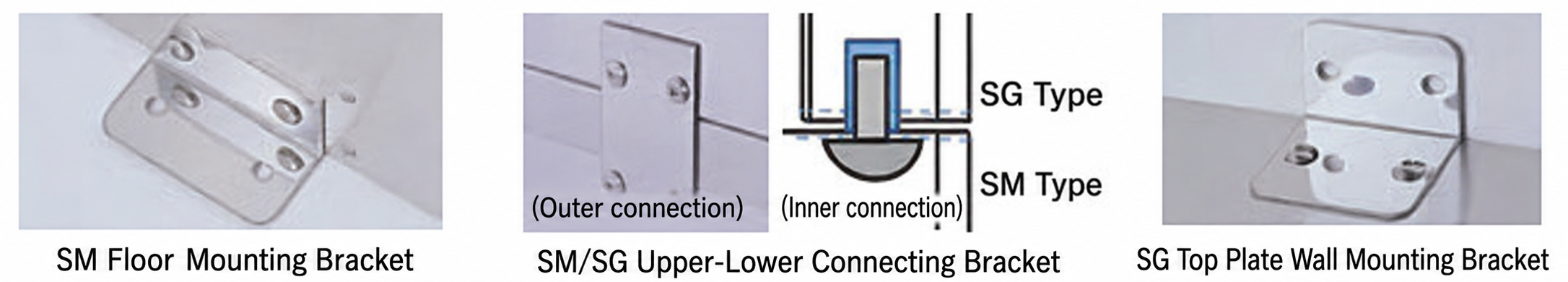

  • For safety, always install the anti-tipping bracket. Please note that the package does not include the screws required to secure the bracket.
  • Moreover, besides fixing the units from the side with brackets, you can connect the upper and lower units with screws from inside. As a result, this method minimizes the gap when you place multiple units side by side.
SectionItemSM Type
Main BodyMaterialStainless Steel SUS304, Exterior: Hairline Finish, Interior: Polished Finish
External Dimensions (mm)W900 × D500 × H900
Internal Dimensions (mm)(W420 × D474 × H810) × 2 Compartments
Opening Dimensions (mm)W402 × H800 (1 Compartment)
Ventilation Holes1 Each at the Top and Bottom of Both Side Panels
DoorMaterialSUS304 (Excluding Hinges and Handles), Slide Hinge Type
Type / HandleSingle-Swing Door with Recessed Resin Handle
Lock1 Lock per Door × 2 (Common Key)
ShelfMaterial / QuantityStainless Steel SUS304, 4 Shelves
Shelf Spacing2 Fixed Shelves per Compartment, 256 mm Spacing
Anti-Tip FittingsFor Floor Fixing: 2 Locations on Each Side × 2
For SM + SG Set: Upper/Lower Connecting Fittings, 1 Location on Each Side × 2
Weight43 kg
