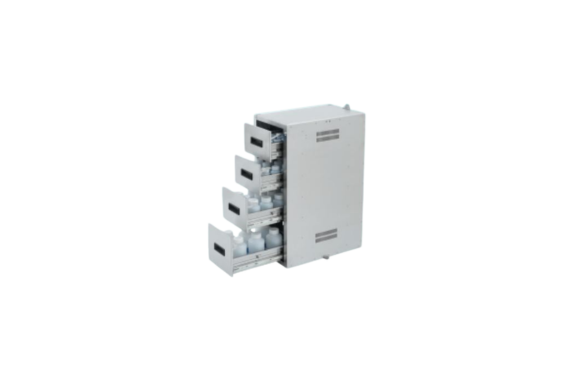

Teraoka SUN-590 Small Container Storage Cabinet (Floor-Standing Type)

Manufacturer: Teraoka Co., Ltd (ANEX).
Model: SUN-590

This unit can store small containers ranging from 50 mL to 1000 mL for tests and other applications. In addition, users can remove the dividers as needed and use the unit as a general storage cabinet.
Furthermore, a single key locks or unlocks all four drawers at the same time. For added safety, slide rails securely hold the drawers in place and prevent users from pulling them out completely.
Please note: Delivery covers transportation to the vehicle only; installation and setup services are not included. Also, polyethylene bottles are not included.

Model	SUN-590
External Dimensions	W362 × D590 × H890 mm
Material	Main Body: Stainless Steel SUS304 Divider Plates: Polypropylene Drawer Storage Rails: Steel with Plated Finish
Drawers	Internal Dimensions	W248 × D380 × H100 mm (Common to All Levels), SUS304 Polished Finish
	Top Drawer	For 50 mL / 100 mL Containers, Effective Storage Height: 170 mm
	Second Drawer	For 200 mL / 300 mL Containers, Effective Storage Height: 170 mm
	Third Drawer	For 500 mL Containers, Effective Storage Height: 190 mm
	Bottom Drawer	For 1000 mL Containers, Effective Storage Height: 230 mm
Accessories	2 Side Floor-Fixing Brackets, 1 Top Wall-Fixing Bracket, 8 Large Divider Plates, 14 Small Divider Plates

Number and Configuration of Included Divider Plates

Drawer Position	Number of Compartments	Compartment Size	Applicable Container Size	Divider Plate Configuration
Top Drawer	24	55 × 55 mm / compartment	50 mL / 100 mL	Large Divider Plates: 3 Small Divider Plates: 5
Second Drawer	15	68 × 78 mm / compartment	200 mL / 300 mL	Large Divider Plates: 2 Small Divider Plates: 4
Third Drawer	12	78 × 85 mm / compartment	500 mL	Large Divider Plates: 2 Small Divider Plates: 3
Bottom Drawer	6	118 × 118 mm / compartment	1000 mL	Large Divider Plates: 1 Small Divider Plates: 2
