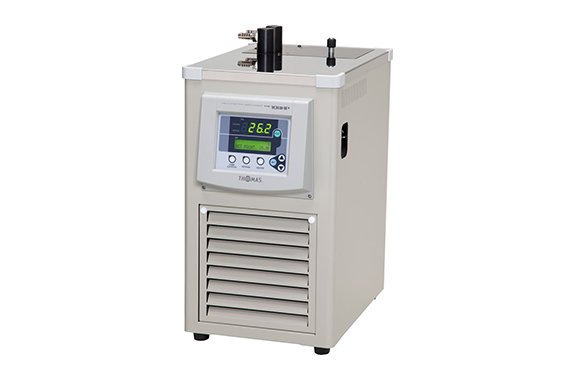

Thomas Scientific TRL-108HP (Non-CFC type) Circulating Hand Cooler

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: TRL-108HP

The TRL-108H’s programmable control specifications allow for a wider range of applications.

●Easy Setup Operation:
Programs with up to 20 steps can be easily run by simply setting the items displayed on the message board. (No complicated parameter settings are required.)

● You can choose between constant-value operation and programmed operation.
Since you can select the operating method, conventional constant-value operation is also possible.

Usage example

Cooling, heating, constant temperature maintenance, and temperature-programmed operation through circulation to heat exchange coils, jackets, chromatography columns, electrophoresis systems, etc.
Cooling of various analytical and measuring instruments.

Specification

External dimensions	W265×D375×H455mm
Internal dimensions of the tank	W180×D110×H180mm
Capacity (L)	3.0
Temperature range (°C)	-10℃ 80℃ When the internal temperature of the tank exceeds 40°C, the refrigerator’s protection circuit will forcibly shut down the refrigerator. 　Therefore, cooling by the refrigerator is not possible when the internal temperature of the tank is between 80°C and 40°C.
temperature control	Digital program control , PID control system, program operation, constant value operation switchable , number of memorized patterns: 1 pattern , number of memorized steps: maximum 20 steps/1 pattern , setting time range: 99 hours 59 minutes/1 step , selection of cooling operation (refrigeration unit ON-OFF) for each step.
heater	Sheath type 500W
Refrigeration unit	Air-cooled 130W HFO-1234yf
cooling capacity	162W (140kcal/h)
cooling capacity environment	Water temperature +10℃ 50Hz
Agitator	Due to the jet of discharged liquid
Circulation pump	20W magnetic pump, maximum head 2m, maximum flow rate 9L/min, maximum discharge pressure 0.02Mpa
Circulation IN-OUT	Outer diameter φ12 hose connection (Rp 3/8)
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Bakelite lid (1 piece)
power supply	AC100V 9A 50/60Hz Power cord 2m
weight	Approximately 29kg
Price (excluding tax)	¥460,000
option	Caster installation: ¥6,000
