Manufacturer: Thomas Scientific Instruments Co., Ltd.

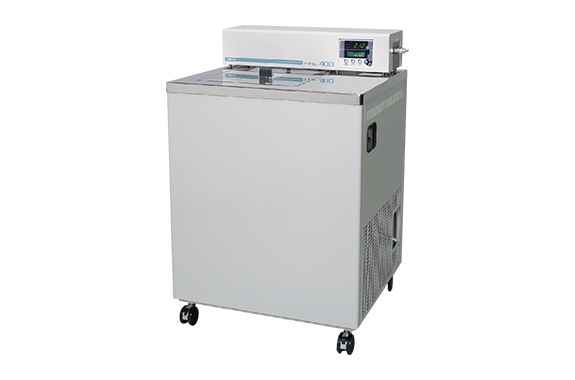

Model: TRL-400

Equipped with a refrigerator, heater, and circulation pump, this system allows for various temperature tests within the tank, as well as the free cooling and heating of external equipment.
The 400W refrigerator can cool down to -20°C.
A separate model, the TRL-130, with higher cooling capacity, capable of cooling down to -35°C, is also available. Choose the model that best suits your needs.

External dimensions	W630 x D580 x H (Aquarium 825 + Control Unit 135) mm
Internal dimensions of the tank	W300×D400×H300mm
Effective dimensions inside the tank	W250×D280×H300mm
Capacity (L)	34
Temperature range (°C)	-20℃ 50℃
temperature stability	Within ±1.5℃
temperature control	Digital temperature indication controller ON-OFF control method
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Sheath type 500W
Refrigeration unit	Air-cooled 400W HFC-404A
cooling capacity	①810W(700kcal/h) ②260W(200kcal/h)
cooling capacity environment	①Water temperature +20℃ 50Hz ②Liquid temperature -20℃ 50Hz *These values ​​are for when the circulation pump is not used.
Agitator	Vertical propeller agitation system, 22W motor
Circulation pump	20W Magnetic Pump Maximum Head: 2m Maximum Flow Rate: 10L/min Maximum Discharge Pressure: 0.02Mpa
Circulation IN-OUT	Outer diameter φ16 hose connection (Rp3/8)
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	One set of height-adjustable stainless steel shelves, one PVC lid.
power supply	AC100V 7A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ16mm
weight	Approximately 90 kg

llustrations
