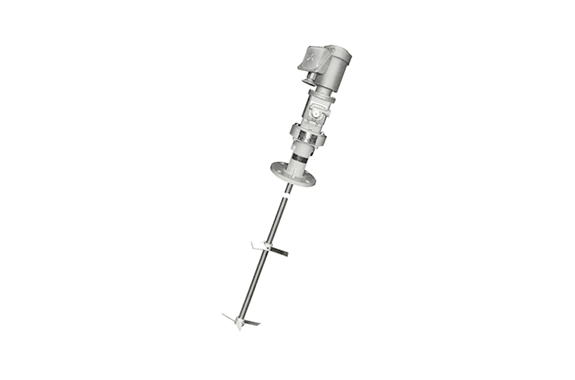

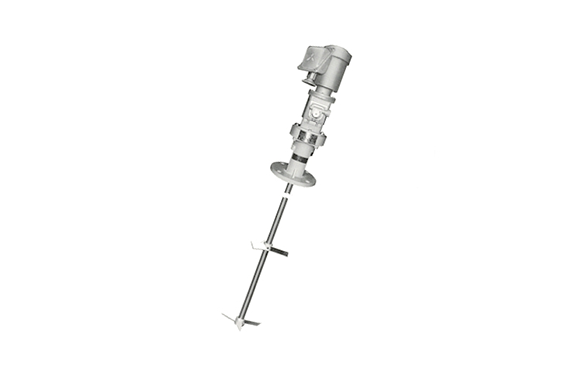

Tohkemy Vertical Small NTR Agitator And Tank

Manufacturer: Tohkemy Corporation
Model: Vertical Small NTR

Features

Corresponds to changes in the purpose of agitation such as viscosity fluctuations in small volumes
An integrated variable-speed control enables technicians to adjust impeller RPM directly on-site while observing tank fluid dynamics to achieve optimal batch homogeneity.
By using the ring cone variable speed reducer, it is possible to shift from 0 rotation.

Standard specifications

Model No.	Power		Rotation speed (min^-1)		2-Blade Paddle diameter	Shaft(mm)		Approximate equipment mass (kg)	Maximum agitating capacity (m³)
Model No.	Output (kW)	Number of poles (P)	50Hz	60Hz	Blade diameter φD	Shaft diameter φd	Standard length L	Approximate equipment mass (kg)	Dilute liquid	Medium viscosity liquid
NTR4-001-1	0.1	4	0～267	0～321	170	20	1,000	35	0.65	0.2
NTR4-001-3			0～160	0～192	220	25	1,200
NTR4-001-5			0～104	0～125	250	25	1,200
NTR4-001-11			0～45	0～54	400	25	1,300	40
NTR4-001-17			0～29	0～35	500	25	1,300	40
NTR4-002-1	0.2	4	0～277	0～333	200	30	1,500	51	1.25	0.4
NTR4-002-3			0～166	0～200	250
NTR4-002-5			0～100	0～120	350
NTR4-002-11			0～45	0～54	500	30	1,800	62
NTR4-002-17			0～29	0～35	550	30	1,800	62
NTR4-004-1	0.4	4	0～279	0～335	220	30	1,500	74	2.5	0.6
NTR4-004-3			0～166	0～200	300	30	1,800	58
NTR4-004-5			0～100	0～120	400	30	1,800	58
NTR4-004-11			0～45	0～54	600	40	2,000	138
NTR4-004-17			0～29	0～35	700	40	2,000	138

A ring cone variable speed reducer is used, and models with other rotation speeds can also be selected.
The motor is a totally-enclosed outdoor motor made by Mitsubishi or a manufacturer-specific motor.
The standard impeller is a 2 stages of 2-blade pitched paddle, but the blade shape may be changed depending on mixing purpose and specifications.
Please contact us for detailed specifications and dimensions.
