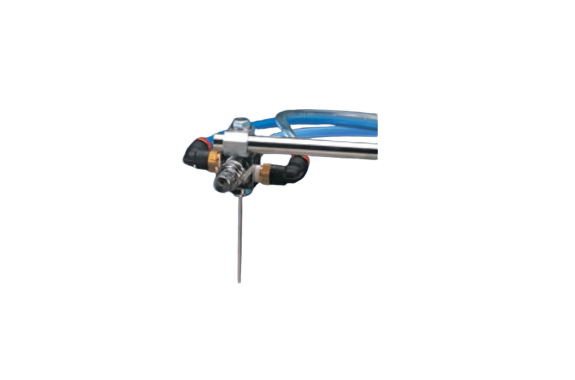

Tomita Engineering FU-3-6 Type Needle Spray Gun
Manufacturer: Tomita engineering Co.,Ltd.
Model: FU-3-6 Type
Feature
- A spray gun with a new mechanism that allows spraying from the needle tip.
- The needle length and diameter can be selected arbitrarily, and it can also be used as a dispenser gun. (Potting and line drawing are possible.)
- Ultra-compact and lightweight design of 20mm x 50mm x 45mm x 100g, and can be easily attached to a 10φ round bar using the included holder.
- Ideal for integration into automated lines.
Specification
| Air hose used | 4φ×6φ(mm) | ||||
| Used liquid hose | 4φ×6φ(mm) | ||||
| Standard nozzle set | 20G | × | 15G | × | 80L |
| Outer diameter 0.88 | Outer diameter 1.81 | ||||
| Inner diameter 0.58 | Inner diameter 1.45 | ||||
| (Other sizes and custom orders are also available.) | |||||
| Discharge amount | Intermittent 0.001cc/shot to continuous 0-2,400cc/min (Shimizu) | ||||
| Air consumption | 24 Nl/min (0.3 MPa) | ||||
| Piston operating air pressure | 0.4–0.7 MPa | ||||
| Material | Nozzle: SUS304, Body: BSBM (chrome plated) | ||||
