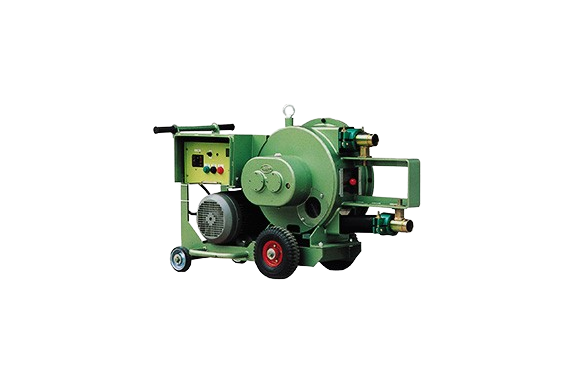

Tomosada Kenki Peristaltic TS-73MT Pump With Frequency Inverter
Manufacturer: Tomosada Kenki Corpotatoin ., Ltd.
Model: TS-73MT
Specification
| Model | TS-73MT |
| Power supply | 5.5kw Three phase * |
| Speed control | 2 Step pulley and inverter |
| Discharge volume | 8 – 100L/min |
| Max. output pressure | 2.5Mpa（25kgf/C㎡） |
| Deliverable distance | Horizontally 150m or vertically 40m |
| Pumping tube | Dia.50×L1400 |
| Pumping roller | 3 rollers |
| Dimension | L1330×W560×H800mm |
| Weight | 295kg |
* Voltages can be converted for the condition in your country
