Japan, Tosei Sharyo
Tosei Sharyo WKP Series Gold Caster
Product Made in Japan
Manufacturer: Tosei Sharyo
Model: WKP Series
Medium Load
Features
Wheel Diameter: 75-150mm
Allowable Load: 80-300kg
General-purpose type widely used in roll boxes, pallets, carts, warehouses, factories, etc.
WKPφ75/100/130/150 have the same mounting pitch as WJ (swivel type).
There is no WKP with stopper.
Specifications

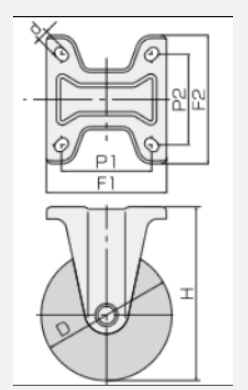

| Wheel Diameter D | Model | Wheel W | Bear Ring | Tolerance Load | Mounting Height H | Mounting Pitch P1×P2 | Plate Size F1×F2 | Mounting Hole Diameter d | Shaft Diameter |
|---|---|---|---|---|---|---|---|---|---|
| 75 | WKP-75 RB | Rubber | ○ | 80kg | 100 | 63×63 | 82×89 | 9.5 | 10 |
| WKP-75 UB | Urethane | ○ | |||||||
| WKP-75 FB | Iron | ○ | |||||||
| WKP-75 N | Nylon | ||||||||
| WKP-75 MCA | MC Nylon | ||||||||
| WKP-75 MCB | MC Nylon | ○ | 120kg | ||||||
| 100 | WKP-100 RB | Rubber | ○ | 130kg | 144 | 71×71 | 100×104 | 10.5 | 12 |
| WKP-100 UB | Urethane | ○ | 180kg | ||||||
| WKP-100 FB | Iron | ○ | |||||||
| WKP-100 N | Nylon | ||||||||
| WKP-100 MCA | MC Nylon | ||||||||
| WKP-100 MCB | MC Nylon | ○ | |||||||
| 130 | WKP-130 RB | Rubber | ○ | 180kg | 177 | 80×80 | 108×110 | 11 | 20 |
| WKP-130 UB | Urethane | ○ | 250kg | ||||||
| WKP-130 FB | Iron | ○ | |||||||
| WKP-130 N | Nylon | ||||||||
| WKP-130 MCA | MC Nylon | ||||||||
| WKP-130 MCB | MC Nylon | ○ | |||||||
| 150 | WKP-150 RB | Rubber | ○ | 200kg | 198 | 90×90 | 120×128 | 11 | 20 |
| WKP-150 UB | Urethane | ○ | 300kg | ||||||
| WKP-150 FB | Iron | ○ | |||||||
| WKP-150 N | Nylon | ||||||||
| WKP-150 MCA | MC Nylon | ||||||||
| WKP-150 MCB | MC Nylon | ○ |
