TOYO DENSEN CO.,LTD
Toyo Densen HB Series High Base Series
Manufacturer: TOYO DENSEN CO.,LTD.
Model: HB Series
Features

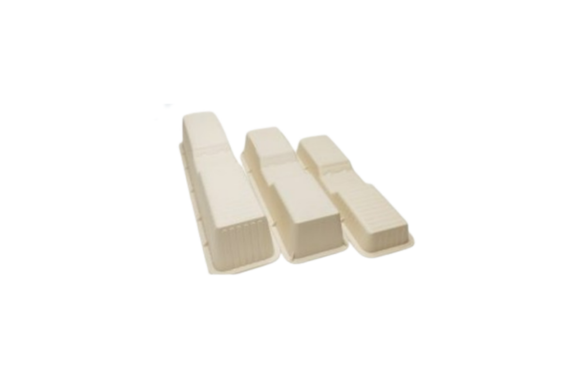

Pictures Left : HB-450, HB-360, SHB-360 / Center : HB- 360 / Right : SHB-360
- Made of light weight, excellent weather resistance, and high load capacity resin.
- Almost no deterioration over time and no temperature-related deforming under -20 to 60 degrees.
- Fixing by screws is easier than bolt locking.
- Easy to install, even at narrow space.
- As to load capacity of HB series, verified enough high load capacity for general outdoor unit from loading test made under 100Kgf to 500Kgf.
Specifications
| Model No. | Size (mm) | Color | Package Q’ty | Material | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| SHB-360 | 360 | 396 | 43 | 78 | 118 | Ivory | 80 | PP |
| HB-360 | 360 | 403 | 78 | 84 | 130 | Ivory | 50 | PP |
| HB-450 | 450 | 500 | 90 | 84 | 130 | Ivory | 30 | PP |
