Toyo Machinery Co., Ltd. Textar

Manufacturer: Toyo Machinery Co., Ltd.
Model: Textar

Features

TX-220 / 221 / 320 / 321 / 325 / 326

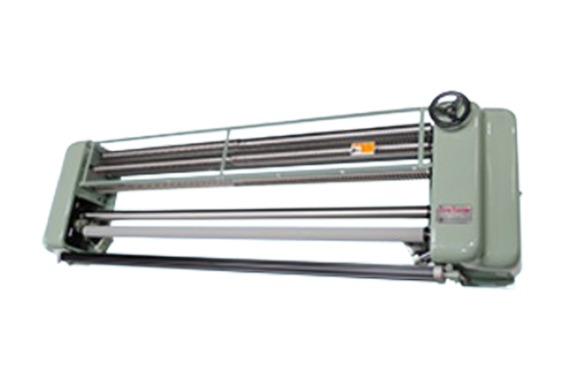

A centering guider is integrated with a roll guider and screw rollers.
Accurate web expansion, selvage opening, and web guiding are provided.
This unit is designed for use in harsh operating environments.
It is especially suitable for high-speed lines and lines where water or chemicals are used.

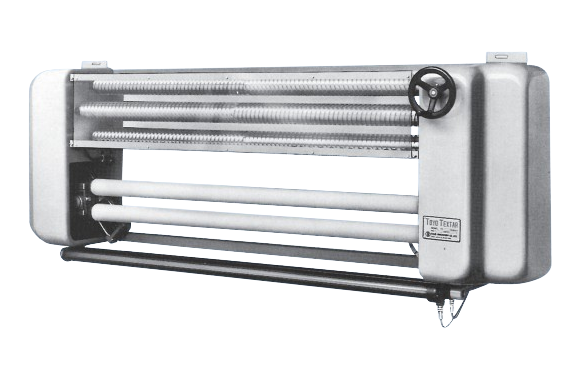

The TEXTAR web guiding and spreading system is designed with a roll guider and scroll rollers.
Accurate and crease-free center control of textile webs is provided.
Various versions are available to meet the specific requirements of different materials and application conditions.
This system is especially suitable for high-speed processing lines up to 150 m/min.
It can also be used in harsh environments where water splashes or corrosive solutions are present.
Typical applications include the inlet of stenter and mangle machines, the outlet of scouring and bleaching ranges, and similar textile processing lines.

Model	TX-220		TX-320		TX-325
Applicable Place	Suitable for areas where the fabric is wet to some extent and the surrounding environment is good Tent, Manhole Entrance		Suitable for areas where the fabric is wet and there is much water splashing Skimmer Outlet		Suitable for areas where the fabric containing chemicals is wet and there is much water splashing Drainage Outlet of Refinery
Scroll AC Motor	Fully enclosed 4P 0.4kW		Fully enclosed outdoor type 4P 0.4kW
Guide Roll DC Motor	DMM-20 200W 1800rpm
Screen Roll	Roll	Outer Diameter 89φ × Lmm Material SUS304 × 3 pcs Rotation Speed 640rpm / 60Hz Rotation Direction Reverse Rotation
	Bearing	Standard Unit Bearing Shaft End: Seal Type		Waterproof Covered Unit Bearing Shaft End: Contact Seal Type
Guide Roll	Roll	Outer Diameter 75φ × Lmm Outer Diameter 75φ × Lnmm		Material SUS304 × 1 pc Material SUS304 + Rubber-Wrapped × 1 pc
	Bearing	Unit Bearing		Covered Unit Bearing
Attached Functions	Automatic Centering Function, Automatic Emergency Stop Function, Line-Linked Terminal Included, Scroll Insertion External Terminal Included
Painting	Melamine Resin Paint Munsell 10GY 6/2		Epoxy Resin Paint Munsell 10GY 6/2
Dimensions	W × H × L = 850 × 410 × (L + 850) mm
Weight	Approx. 300 kg (L = 1800 mm)

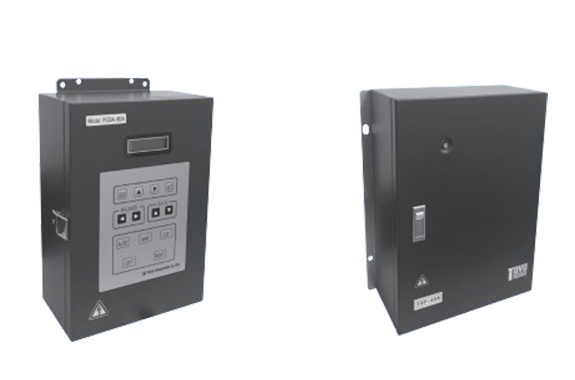

Specifications	System	Reversible thyristor Leonard control servo system
	Control System	Non-circulating current reversible current control & speed control system
	Main Drive Circuit System	Antiparallel connection thyristor single phase bridge full wave control
	Braking System	Regenerative brake
	Speed Detection	Armature electromotive force
	Rated Command Input Voltage	±10V DC (Input impedance 20KΩ)
	Rated Output	400W
	Power Source	AC 1φ 200/220V ±10% 50/60Hz
	Protection System	Over load protection, Short protection Main circuit-control circuit insulating protection Surge protection
	Attachment	Magnet contactor with surge absorbers
Functions	Automatic center return function Output terminals for emergency stop Output terminals for simultaneous operation
Power Source	AC 3φ 200V 50/60Hz 220V 60Hz AC 1φ 200/220V 50/60HzAC 3φ 380～440V 50/60Hz AC 1φ 200/220V 50/60Hz
Ambient Temperature	0～45°C
Dimension	370×470×155mm
Mass	Approx. 17kg
