Toyo Machinery Co.

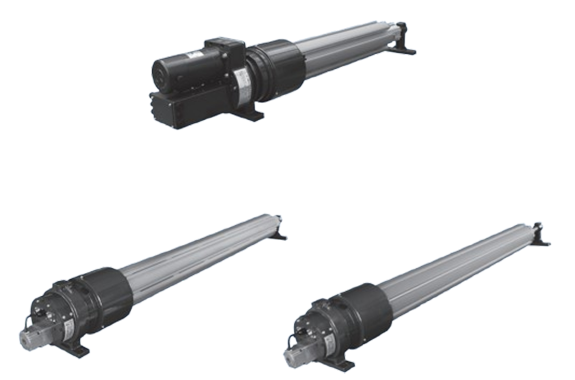

Toyo Machinery Co., Ltd. WB-210, 220, 300 DC Motor Series
Manufacturer: Toyo Machinery Co., Ltd.
Model: WB-210, 220, 300
Features
- DC motor (100W, 200W, 350W) is adopted and suitable for wide or high tension web.
Specifications
| Model | Roller face length (mm) | Roller diameter (mm) | Quantity of slats | Amount of sliding (max) (mm) | Speed of sliding (max) (mm/sec) | DC motor output (W) | Mass (kg) |
| WB-210 | ~2400 | 164 | 6 | ±35 | 80 | 100 | 80/2000L |
| WB-220 | ~3200 | 190 | 8 | ±35 | 95 | 200 | 160/3000L |
| WB-300 | ~4500 | 240 | 10 | ±55 | 65 | 350 | 250/4200L |

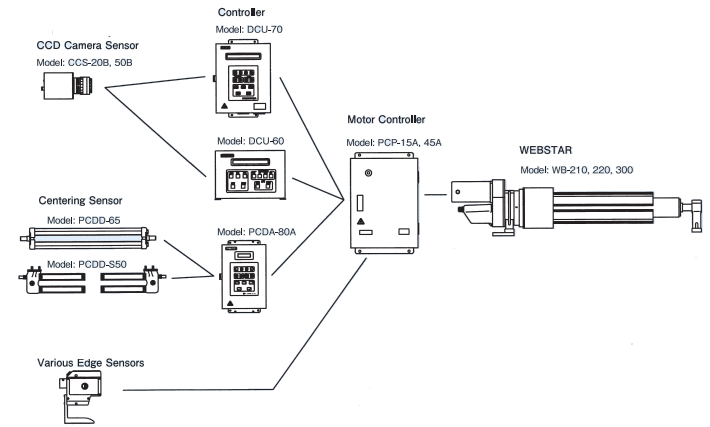

◆System

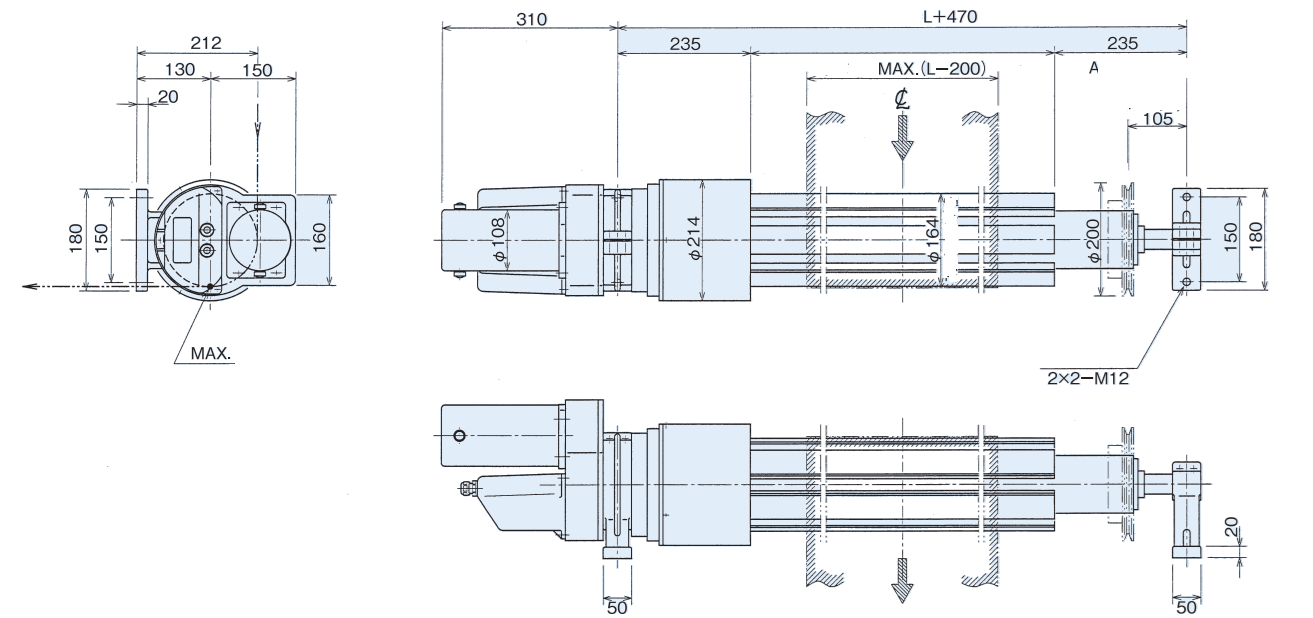

◆WB-210

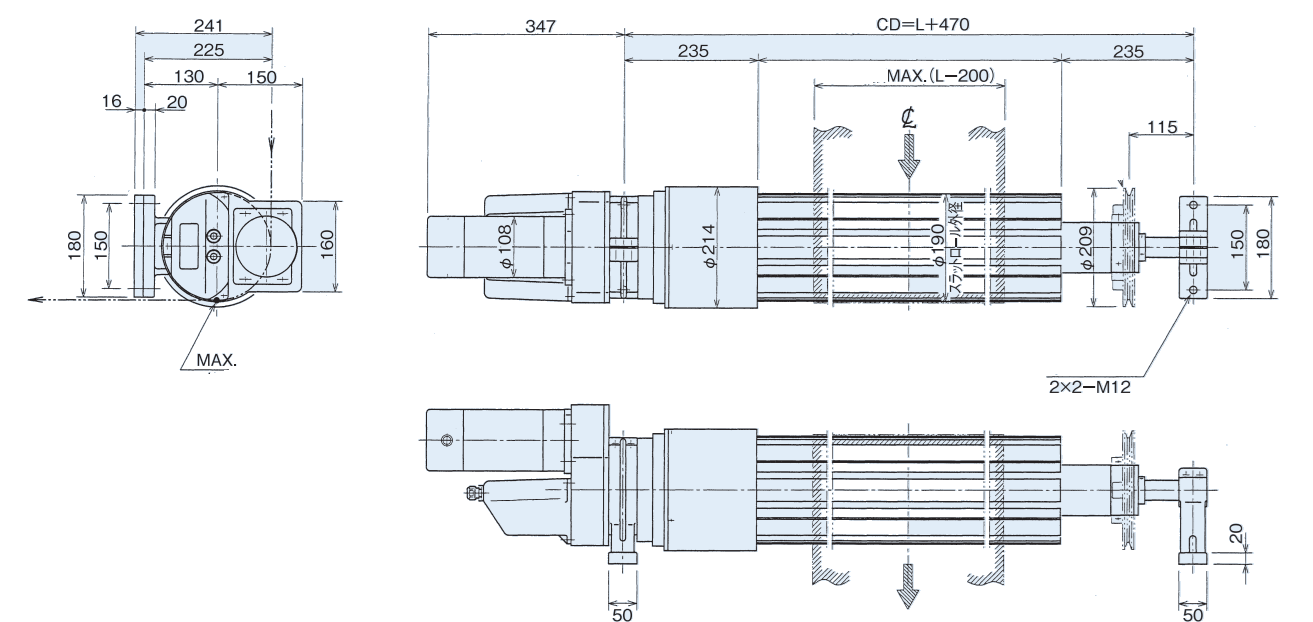

◆WB-220

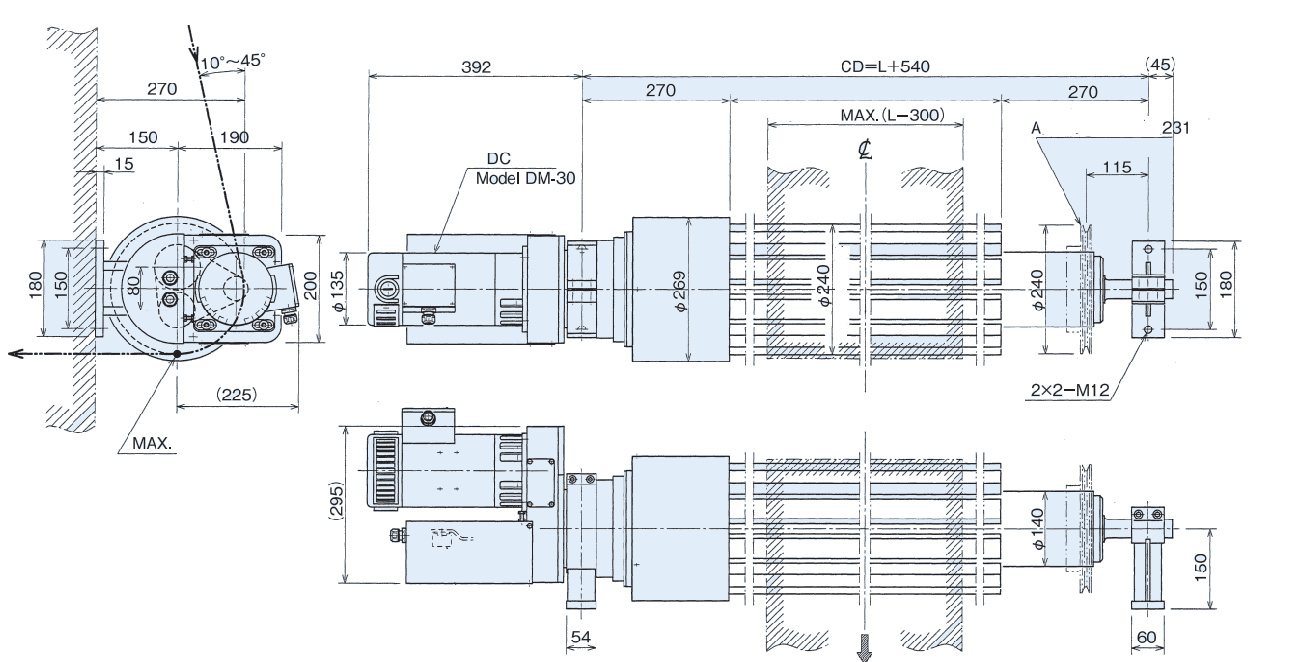

◆WB-300
