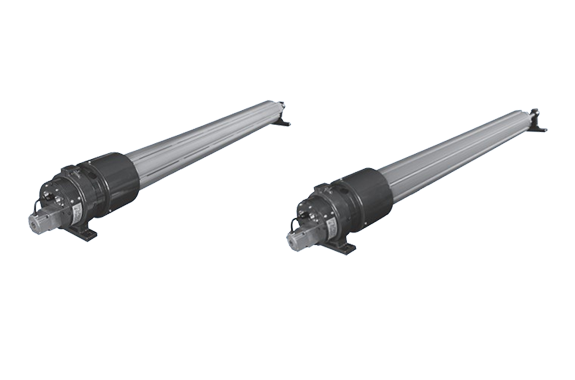

Toyo Machinery Co., Ltd. WB-70A, 80 DC Brushless Motor Series
Manufacturer: Toyo Machinery Co., Ltd.
Model: WB-70A, 80
Features
- WB-70A and WB-80 feature 30W brushless motor which assure maintenance-free running.
- Roller face length is 1500mm at max. They are suitable for film, non-woven and looped rubber sheet, etc. with low tension.
- WB-70A has 6 slats mounted on the core roll and WB-80 has 8 slats with reduced gap between slats to decrease web fluttering while roll rotating.
Specifications
| TECHNICAL DATA | |||||||
| Model | Roller face length (mm) | Roller diameter (mm) | Quantity of slats | Amount of sliding (max) (mm) | Speed of sliding (max) (mm/sec) | DC motor output (W) | Mass (kg) |
| WB-70A | ~1500 | 164 | 6 | ±37.5 | 60 | 30W, i=1/5 | 47/1000L |
| WB-80 | ~1500 | 164 | 8 | ±37.5 | 60 | 30W, i=1/5 | 50/1000L |

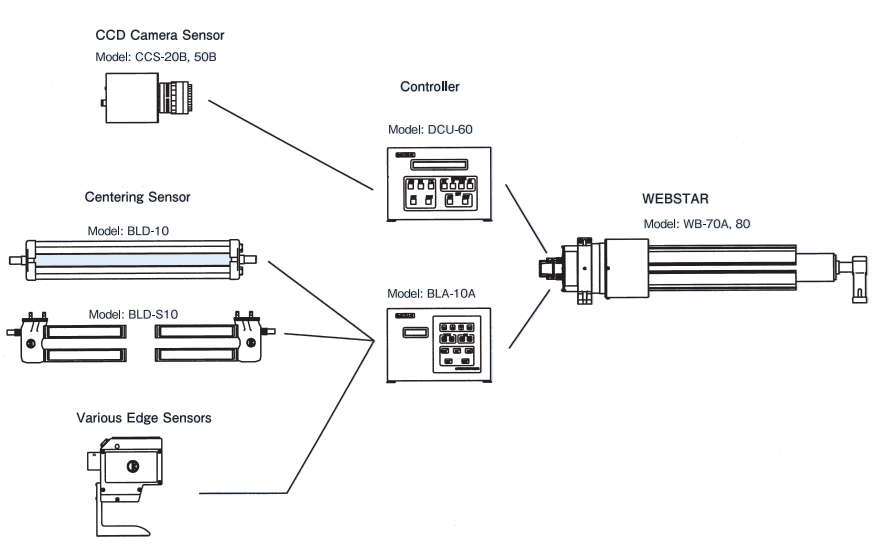

◆ System

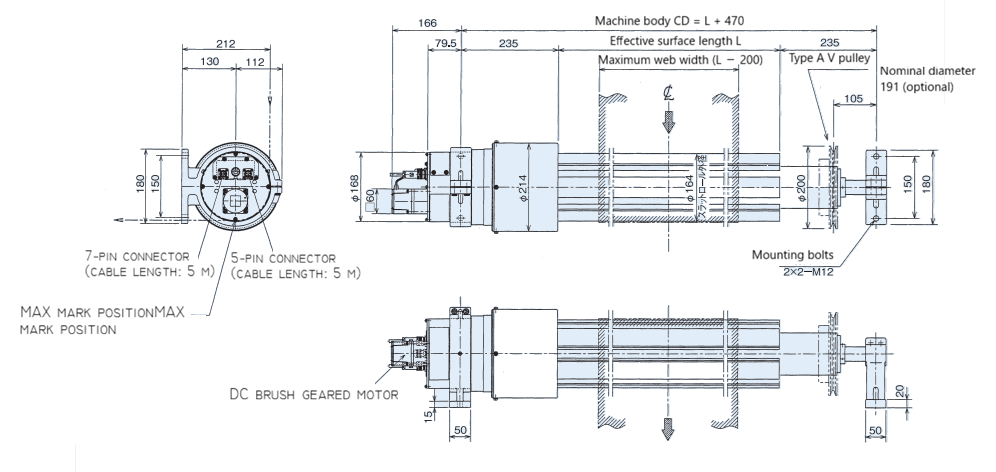

◆WB-70A

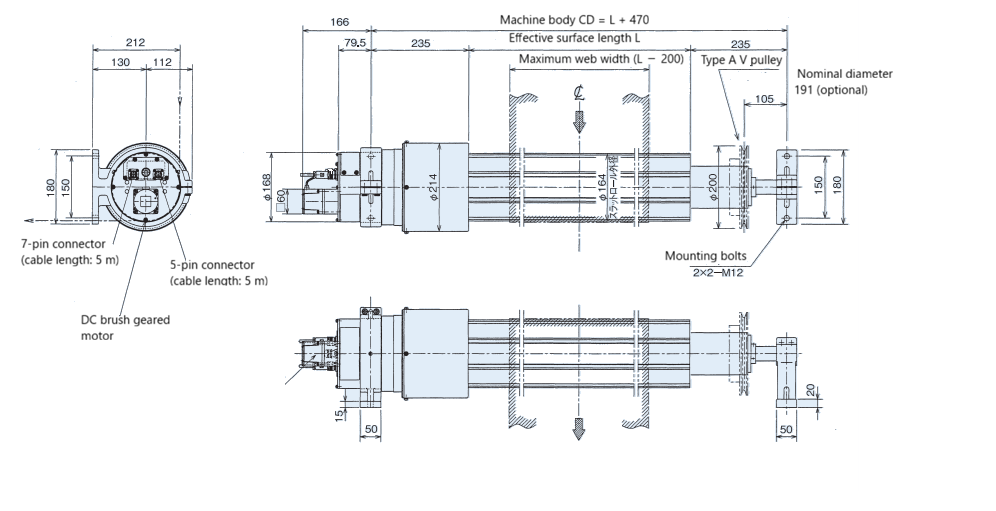

◆WB-80
