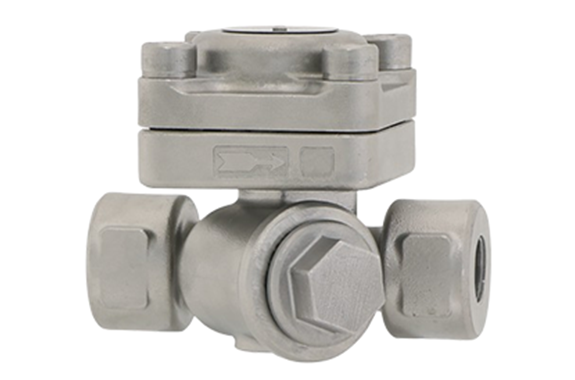

Venn AD-22 Steam Trap
Manufacturer: Venn Co., Ltd.
Model: AD-22
Features
- Both the main body and key components are made of stainless steel.
- It can install horizontally or vertically with the outlet facing downward (excluding installation with the top cover facing down).
- In addition, it supports a wide pressure range and can use in many different applications.
Specification
| Product Symbol | AD22-D |
|---|---|
| Types of valves | Steam trap |
| Form | disc |
| Nominal diameter | 15～25（1/2～1） |
| Applicable fluids | Steam |
| Fluid temperature | Below 220°C |
| Application pressure | 0.03～1.6MPa |
| Maximum continuous discharge | 900L/h |
| End connection | JIS Rc Screw |
| Mounting Position | Horizontal, vertical (outlet facing down), horizontal mounting freely (excluding top lid facing down) |
| Strainer | 80 mesh |
| Material: Body | SCS |
| Material: Valve seat | SUS |
| Material: Disc | SUS |
