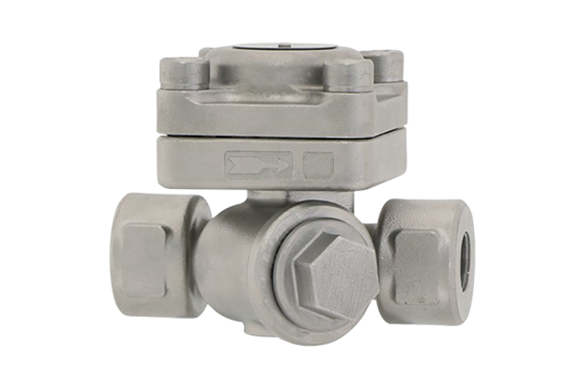

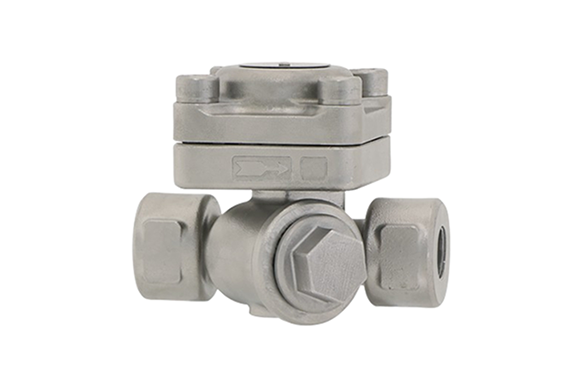

Venn AD-22 Steam Trap
Manufacturer: Venn Co., Ltd.
Model: AD-22
Features
Both the main body and key components make of stainless steel.
In addition, it can mount horizontally or vertically with the outlet facing downward.
However, mounting with the top lid facing downward exclude.
Moreover, it supports a wide pressure range.
As a result, it can use in many different applications.
Specifications
| Product Symbol | AD22-D |
|---|---|
| Types of valves | Steam trap |
| Form | disc |
| Nominal diameter | 15～25（1/2～1） |
| Applicable fluids | Steam |
| Fluid temperature | Below 220°C |
| Application pressure | 0.03～1.6MPa |
| Maximum continuous discharge | 900L/h |
| End connection | JIS Rc Screw |
| Mounting Position | Horizontal, vertical (outlet facing down), horizontal mounting freely (excluding top lid facing down) |
| Strainer | 80 mesh |
| Material: Body | SCS |
| Material: Valve seat | SUS |
| Material: Disc | SUS |
