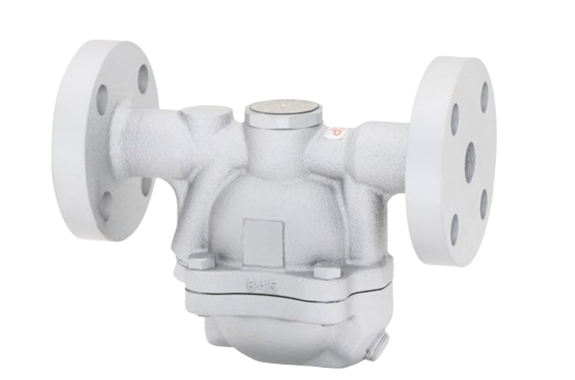

Venn AF-23F Steam Trap
Manufacturer: Venn Co., Ltd.
Model: AF-23F
Features
- It has a high maximum applied pressure and can use in a wide range of applications.
- The material of the key parts is stainless steel.
- It is an energy-saving design with high sealing properties.
- Continuously discharge the condensate.
Specifications
| Product Symbol | AF23F-ML | AF23F-MM | AF23F-MH |
|---|---|---|---|
| Types of valves | Steam trap | ||
| Form | float type | ||
| Nominal diameter | 15～25（1/2～1） | ||
| Applicable fluids | Steam | ||
| Fluid temperature | Below 220°C | ||
| Application pressure | 0.01～0.3MPa | 0.01～0.8MPa | 0.01～2.1MPa |
| Maximum continuous discharge | 730L/h | 800L/h | 910L/h |
| End connection | JIS 10K, 16K, 20K (Shared) FF Flange | JIS 10K, 16K, 20K (Shared) RF Flanges | |
| Mounting Position | Upright mounting on horizontal piping | ||
| Material: Body | FCD | ||
| Material: Valve seat | SUS | ||
| Material: Ball | SUS | ||
