Venn Co.

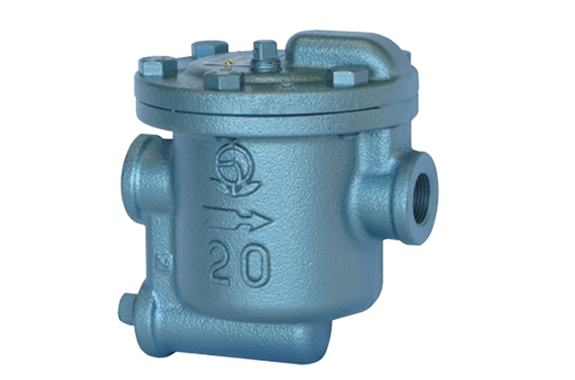

Venn AK-21 type air trap
Manufacturer: Venn Co., Ltd.
Model: AK-21
Features
- The structure is simple and easy to maintain.
- In addition, the design resists dust and scale buildup.
- Moreover, because drainage flows in easily, there is no need to install a pressure equalizing pipe.
Specifications
| Product code | AK21-G |
|---|---|
| Valve type | Air trap |
| format | Bucket type |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | air |
| Fluid temperature | 5-100 ℃ |
| Applicable pressure | 0.01-0.98MPa |
| Maximum continuous emissions | 625L / h |
| End connection | JIS Rc screw |
| Mounting posture | Upright mounting on horizontal piping |
| Material body | FC |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material protector | SUS |
