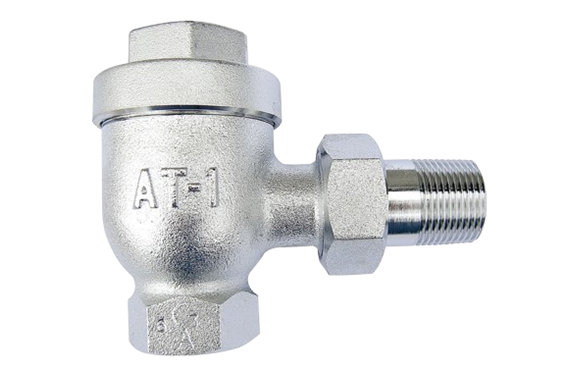

Venn AT-1A type radiator trap
Manufacturer: Venn Co., Ltd.
Model: AT-1A
Features
- Since the structure does not allow drainage to stay, freezing can prevent.
- Drain and air at the beginning of ventilation quickly discharge.
Specifications
| Product code | AT1A-F |
|---|---|
| Valve type | steam trap |
| format | Bellows type |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 120 ℃ or less |
| Applicable pressure | 10-100kPa |
| Maximum continuous emissions | 1900L / h |
| End connection | Inlet: JIS R screw (union fitting), Outlet: JIS Rc screw |
| shape | Angle shape |
| Material body | CAC406 Nickel Chrome Plating |
| Material Valve body | C3604 |
| Material Valve seat | C3604 |
| Material bellows | C5212 |
