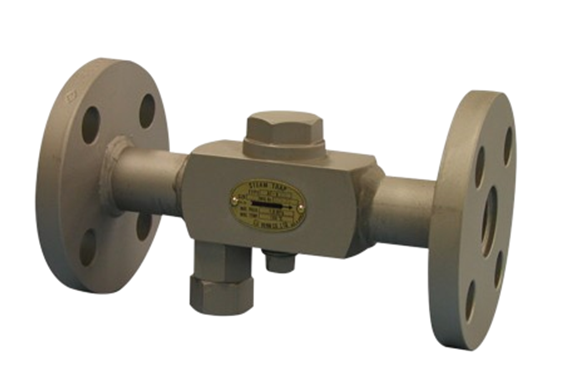

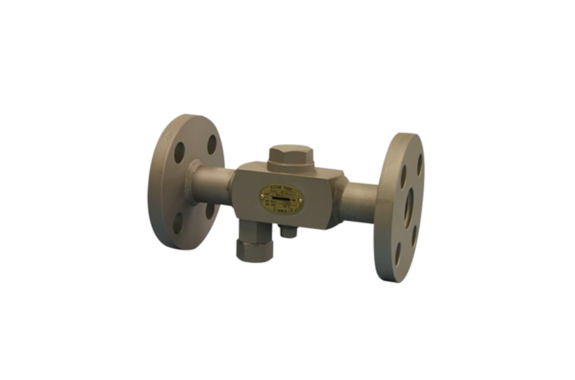

Venn AT-6FB Steam Trap (With Primary Side Non-Freezing Valve)
Manufacturer: Venn Co., Ltd.
Model: AT-6FB
Features
- Initial air venting is high, and drain air discharges quickly.
- In addition, the main body is available in SS or SUS materials.
- Moreover, a pressure non-freezing valve is built into the primary side.
Specifications
| Product Symbol | AT6FB-N | AT6FB-D |
|---|---|---|
| Types of valves | Steam trap | |
| Form | thermoelement | |
| Nominal diameter | 15～25（1/2～1） | |
| Applicable fluids | Saturated steam | |
| Fluid temperature | Below 184°C | |
| Application pressure | 0.07～1.0MPa | |
| Maximum continuous discharge | 2480L/h | |
| End connection | JIS 10K FF Flang(Non-freezing valve discharge side JIS Rc1/2 screw) | |
| Anti-freeze valve, valve opening pressure | 0.02±0.005MPa | |
| Non-freezing valve, valve closure pressure | 0.03±0.005MPa | |
| Mounting Position | Horizontal, vertical, and horizontal mounting | |
| Material: Body | SS | SUS |
| Material: Key parts: Valve body | SUS304 | |
| Material Key part Valve seat | SUS304 | |
| Material Key part Thermo element | SUS316L | |
