It uses a thermowax type mechanism to release air with stable operation.
As a result, equipment start-up time shorten.
In addition, it prevents uneven heating caused by air accumulation.
Moreover, it helps discharge drain after the boiler or steam supply is shut down.
Specifications

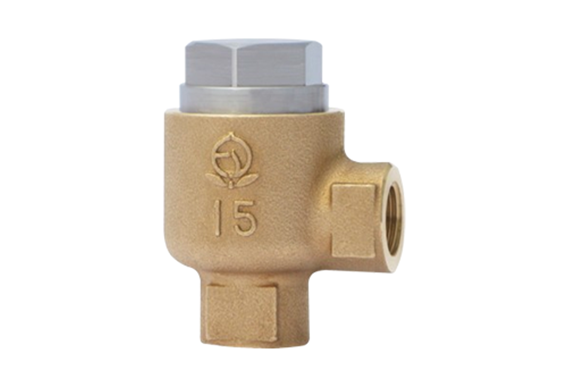

| Product Symbol | AT7-F |
|---|---|
| Types of valves | Air Bleed Valve |
| Nominal diameter | 15・20（1/2・3/4） |
| Applicable fluids | Steam |
| Fluid temperature | Below 171°C |
| Application pressure | Less than 0.7MPa |
| End connection | JIS Rc Screw |
| Form | thermowax type |
| Mounting Position | Free vertical and horizontal mounting |
| Material: Body | CAC406 |
| Material: Cap | SUS304 |
| Material: Thermo unit | SUS・C3604B |
