Venn Co.

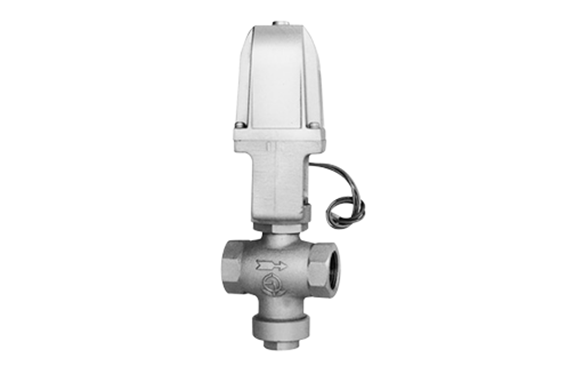

Venn ED-S Solenoid Valve (for Liquids and Gases)
Manufacturer: Venn Co., Ltd.
Model: ED-S
Features
- The ED-S type with a screw connection and the ED-F type with a flange connection are semi-direct-acting two-way solenoid valves.
- These valves open and close using a strong electromagnet and design for use when the viscosity is high or the pressure is low.
Specification
| Product Symbol | EDS-J | EDS-W |
|---|---|---|
| Types | Metal Touch | Disk |
| Activate | Power on | |
| Nominal diameter | 10～50（3/8～2） | |
| Applicable fluids | Metal Touch: Water & Oil, Disc Input: Diesel・Kerosene・Inert gas | |
| Fluid temperature | 5～100℃ | |
| Fluid viscosity | Below 100cSt | |
| Application pressure | 0～0.7MPa | |
| Minimum differential pressure before and after the valve | 0MPa | |
