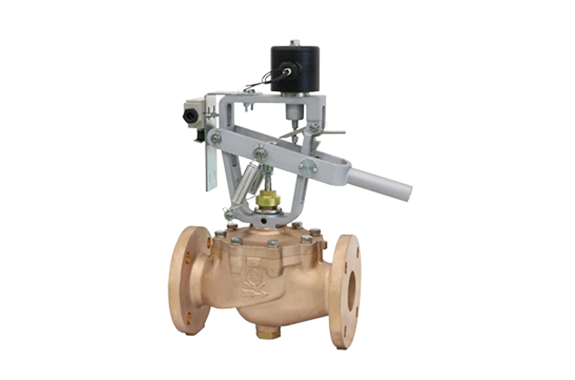

Venn EIT-3DN Electromagnetic Emergency Shut-Off Valve
Manufacturer: Venn Co., Ltd.
Model: EIT-3DN
Features
- This electromagnetic emergency shut-off valve is compatible with an emergency shut-off system for water tanks.
- The body makes of stainless steel or bronze, ensuring there is no red water.
- It can integrate with the CB type control panel to create a comprehensive emergency shut-off system for the water tank.
Specification
| Product Symbol | EIT3DN-WC |
|---|---|
| Types of valves | electric |
| Types | Water Supply Act Performance Standard Compliant Product (Bronze) |
| Activate | Valve closure when the shock sensor is activated (valve closure when energized) (after operating the control panel shock sensor return button) Manually shut-off valve opening |
| Nominal diameter | 50～100（2～4） |
| Applicable fluids | Water |
| Fluid temperature | 5～60℃ |
| Rated voltage | DC24V |
| Rated current | 0.92A |
| Protective structure | Dustproof type (Type B insulation structure) / Indoor use |
| Ambient temperature | -10~40°C (non-freezing) |
| End connection | JIS 10K FF Flange |
| Mounting Position | Upright mounting on horizontal piping |
| Pressure Rating | 1.0MPa |
| Application Differential Pressure Limit | Nominal diameter 125 or less: 0.1 MPa or less Nominal diameter 150: 0.05 MPa or less Nominal diameter 200: 0.04 MPa or less |
| Allowable leakage | None |
| Standard Accessories | With 1 limit switch (no voltage, for control panel opening and closing indication and pump interlock) |
| Material: Body | CAC406 |
| Material: Valve body | SUS (with PTFE disc) |
