Venn Co.
Venn FD-10N Constant Flow Valve (for Overflow Limiting and Water Supply)
Manufacturer: Venn Co., Ltd.
Model: FD-10N
Features
- We have a wide range of set flow rates.

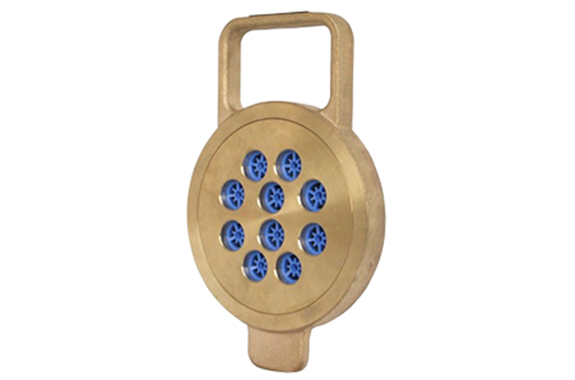

- The internal constant flow cartridge can replace and maintaine.
- The elasticity of the unique rubber provides stable constant flow control.
Specifications
| Product Symbol | FD10N-F |
|---|---|
| Types of valves | Constant flow valve |
| Uses | Water supply (overflow limit) |
| Nominal diameter | 65～100（2 1/2～4） |
| Applicable fluids | Tap water |
| Fluid temperature | 5～40℃ |
| Primary Side Application Pressure | 1.0MPa or less |
| Working differential pressure range | 0.1~0.7MPa or 0.2~0.5MPa (depending on nominal diameter and set flow rate) See table below) |
| Set flow rate and symbol | Tolerance Set flow ± within 20% |
| End connection | Wafer type (compatible with JIS 10K flanges) |
| Mounting Position | Horizontal and vertical freedom |
| Material: Body | CAC |
| Material: Cartridge | POM Resin, EPDM |
