Venn Co.

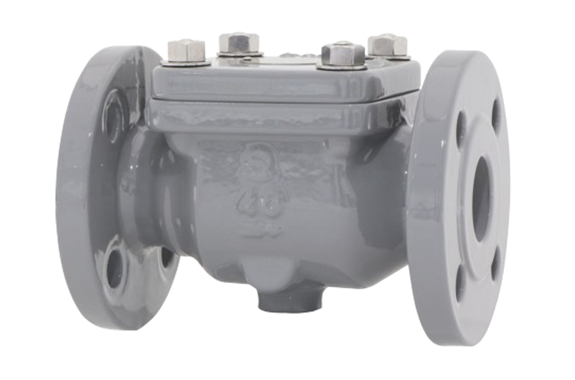

Venn KT-8PN type strainer
Manufacturer: Venn Co., Ltd.
Model: KT-8PN
Features
- The uniquely designed stopper makes disassembly and cleaning easy.
- In addition, it complies with the performance standards of the Waterworks Act and supports pressures up to 2.0 MPa.
Specifications
| Product code | KT8PN-M |
|---|---|
| Valve type | Straight type |
| type | Epoxy resin powder coating |
| Nominal diameter | 40-100 (1 1/2-4) |
| Applicable fluid | Water / hot water |
| Fluid temperature | 5-60 ℃ |
| Applicable pressure | 2.0MPa or less |
| End connection | JIS 20K RF flange |
| Mesh | 60 mesh 20, 40, 80, 100 mesh |
| Tolerant differential pressure | 0.1MPa or less |
| Painting | Body / lid: Epoxy resin powder coating on both inner and outer surfaces 0 3 mm or more (gray color) |
| Material body | FCD |
| Material net | SUS |
