Venn Co.

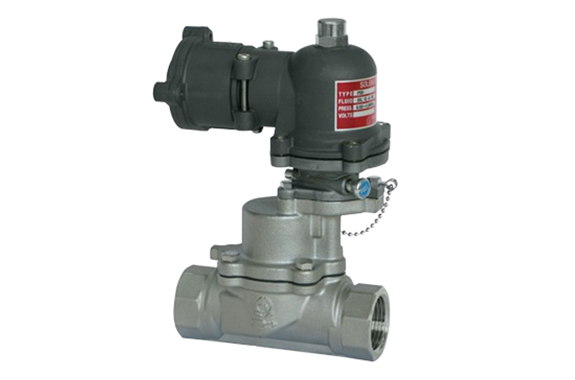

Venn PSE-19 type Explosion-proof solenoid valve
Manufacturer: Venn Co., Ltd.
Model: PSE-19
Features
- It uses in explosive hazard areas.
- With a manual mechanism, it allows for easy test operation and functionality in the event of a power failure.
- The direction of the conduit thread can change, making installation and wiring easier.
- The main body makes of stainless steel, making it suitable for use with gasoline, heavy oil A, and similar substances.
Specification
| Product code | PSE19-D1 | PSE19-D2 |
|---|---|---|
| type | Piston type | |
| shape | Straight type | |
| Actuation | Energized open | |
| Nominal diameter | 15-50 (1/2-2) | |
| Applicable fluid | Oil (kerosene, light oil, heavy oil A, gasoline) Inert gas / air | |
| Fluid temperature | 5-60 ℃ | |
| Fluid viscosity | 50cSt or less | |
| Applicable pressure | 0.02 to 1.0MPa | |
