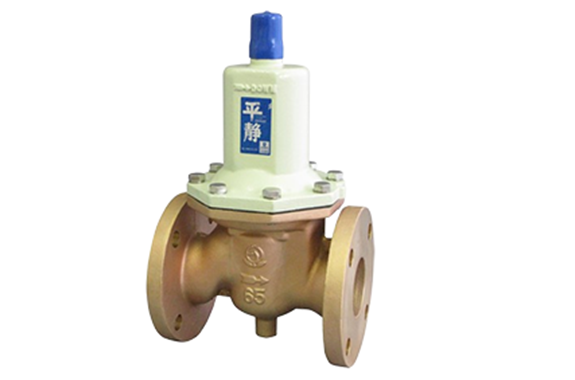

Venn RD-34FN type pressure reducing valve
Manufacturer: Venn Co., Ltd.
Model: RD-34FN
Features
- It is a low noise design.
- It is about 50% smaller and lighter than the conventional FC product.
- Even if the diaphragm damages, water will not leak to the outside.
- It has a built-in strainer. (Nominal diameter 50 or less)
Specifications
| Product code | RD34FN-F |
|---|---|
| Valve type | Pressure reducing valve |
| type | For 1.6MPa or less |
| Nominal diameter | 65-100 (2 1/2-4) |
| Applicable fluid | Water / hot water |
| Fluid temperature | 5 to 90 ° C |
| Primary side applied pressure | 1.6MPa or less |
| Secondary adjustment pressure range (set pressure) | L: 0.05 to 0.35MPa H: Nominal diameter 100 or less: 0.3 to 0.7MPa, Nominal diameter 125,150: 0.3 to 0.5MPa |
| Maximum decompression ratio | 10: 1 |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Allowable leakage amount | None (visual pressure gauge) |
| End connection | JIS 16K FF flange |
| Mounting posture | Horizontal / vertical (excluding strainer cap upward) |
| strainer | Equivalent to 40 mesh (nominal diameter 50 or less) |
| Material body | CAC406 |
| Material diaphragm | Chlorine water resistant EPDM |
| Material disc | Chlorine water resistant EPDM |
| Material parts | CAC406 |
| Material Spring case | FC |
