Venn Co.

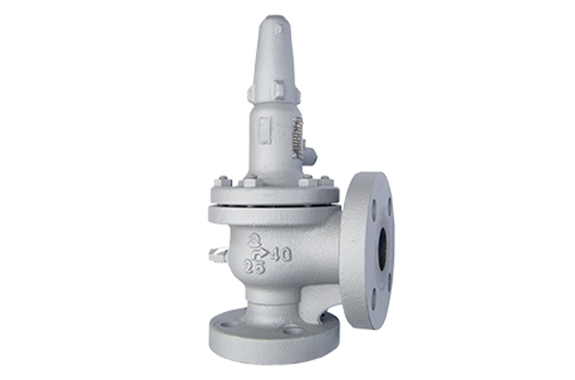

Venn SF-14L type safety valve (full volume type)
Manufacturer: Venn Co., Ltd.
Model: SF-14L
Specifications
| Product code | SF14L-G |
|---|---|
| format | Full quantity formula |
| Cap format | No lever |
| Nominal diameter | 25-150 (1-6) |
| Applicable fluid | steam |
| Set pressure range | 0.1-1.0MPa |
| Fluid temperature | 0-184 ℃ |
| End connection | Entrance: JIS 10K FF flange (thickness depends on dimension table) Exit: JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | FC |
| Material Valve body | SUS or SCS |
| Material Valve seat | SUS or SCS |
