Venn Co.

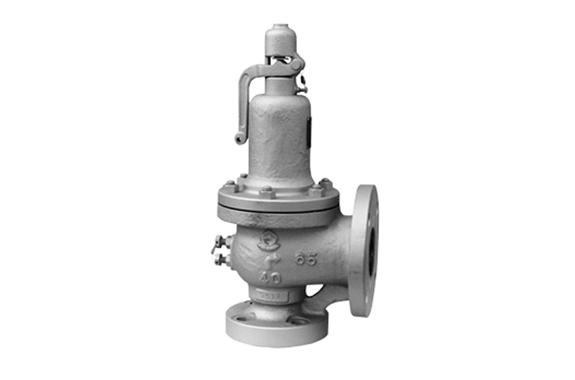

Venn SF-15 Type Safety Valve (Full Volume Type)
Manufacturer: Venn Co., Ltd.
Model: SF-15
Specifications
| Product code | SF15-C |
|---|---|
| Format | Full quantity formula |
| Cap format | With lever |
| Nominal diameter | 40-150 (1 1/2-6) |
| Applicable fluid | air |
| Set pressure range | 0.1-1.0MPa |
| Fluid temperature | -5 to 235 ° C |
| End connection | Entrance: JIS 10K RF flange (thickness depends on dimension table) Exit: JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | SCPH |
| Material Valve body | SUS or SCS |
| Material Valve seat | SUS or SCS |
